IHLD4032KBER100M5A
ActiveVishay Dale
FIXED IND 10UH 5.6A 32.6MOHM SMD
IHLD4032KBER100M5A
ActiveVishay Dale
FIXED IND 10UH 5.6A 32.6MOHM SMD
Description
General part information

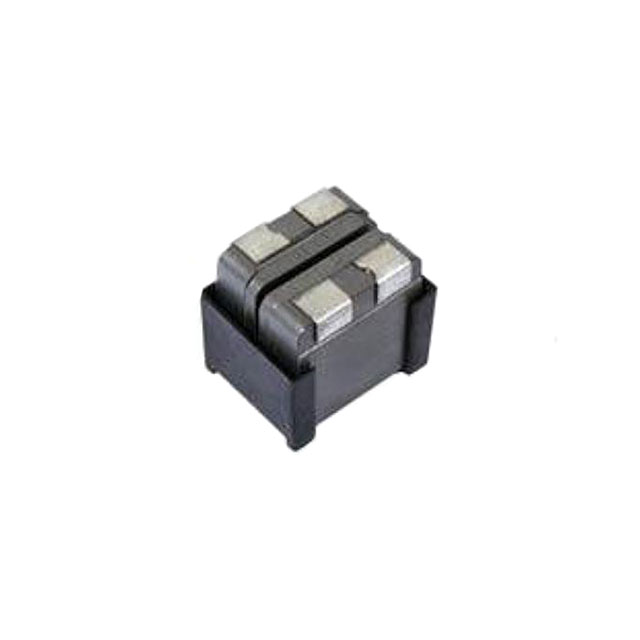

IHLD4032KBER100M5A
10 µH Shielded Inductor 5.6 A 32.6mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | IHLD4032KBER100M5A |
|---|---|
| Current - Saturation (Isat) | 7.4 A |
| Current Rating | 5.6 A |
| DC Resistance (DCR) (Max) | 32.6 mOhm |
| Frequency - Self Resonant | 10.2 MHz |
| Height - Seated (Max) | 0.365 in |
| Inductance | 10 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension Length | 0.384 in |
| Size / Dimension Width | 0.379 in |
| Tolerance | 20 % |
