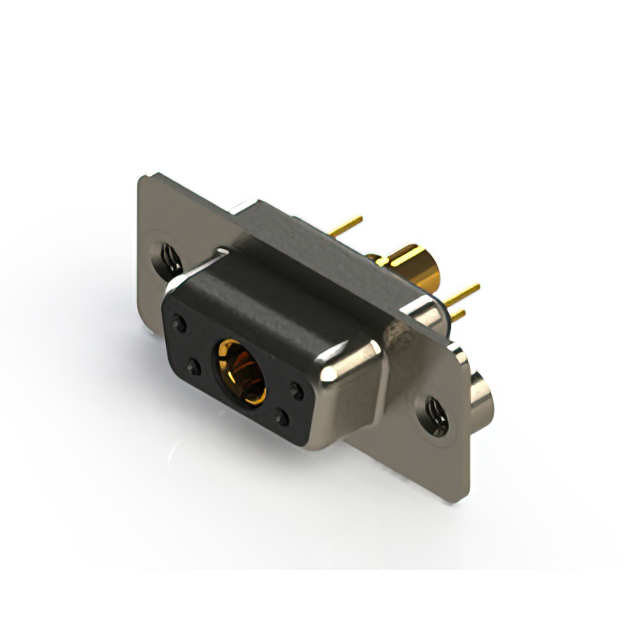

628-5W1-624-4NA

Active

EDAC Inc.

5P FEMALE STRAIGHT 2 40A PLUGIN D-SUB / VGA CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

628-5W1-624-4NA

Active

EDAC Inc.

5P FEMALE STRAIGHT 2 40A PLUGIN D-SUB / VGA CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	628-5W1-624-4NA

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	40 A, 5 A
Dielectric Material	Polyester Thermoplastic
Features	Shielded
Flange Feature	Board Side (M3)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	5
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	1 (DE, E) - 5W1
Termination	Solder
Voltage Rating	125 VDC

628-5W1 Series

...

Part	Connector Style	Contact Material	Flange Feature	Contact Type	Number of Rows	Number of Positions	Mounting Type	Shell Size, Connector Layout	Material Flammability Rating	Contact Finish	Termination	Connector Type	Contact Finish Thickness	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Features	Color	Voltage Rating	Current Rating (Amps)	Number of Positions [custom]	Number of Positions [custom]	Shell Material, Finish	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 628-5W1-224-4TA	Combo D-Sub	Copper Alloy	Board Side (M3)	Signal and Power	2	5	Through Hole	1 (DE E) - 5W1	UL94 V-0	Gold	Solder	Receptacle Female Sockets	Flash	Polyester Thermoplastic	-55 °C	125 °C	Shielded	Black	125 VDC	5 A 40 A
EDAC Inc. 628-5W1-224-7N5	Combo D-Sub	Copper Alloy	4-40 Board Side	Coax Signal	2		Through Hole	1 (DE E) - 5W1	UL94 V-0	Gold	Solder	Receptacle Female Sockets	Flash	Polyester Thermoplastic	-55 °C	125 °C	Board Lock Shielded	Black	125 VDC		4	1	Nickel Plated Steel
EDAC Inc. 628-5W1-224-5N4	Combo D-Sub	Copper Alloy	4-40	Coax Signal	2		Through Hole	1 (DE E) - 5W1	UL94 V-0	Gold	Solder	Receptacle Female Sockets	Flash	Polyester Thermoplastic	-55 °C	125 °C	Shielded	Black	125 VDC		4	1	Nickel Plated Steel
EDAC Inc. 628-5W1-624-4NA	Combo D-Sub	Copper Alloy	Board Side (M3)	Signal and Power	2	5	Through Hole	1 (DE E) - 5W1	UL94 V-0	Gold	Solder	Receptacle Female Sockets		Polyester Thermoplastic	-55 °C	125 °C	Shielded	Black	125 VDC	5 A 40 A			Nickel Plated Steel	0.76 Ám	30 Áin
EDAC Inc. 628-5W1-222-5T1	Combo D-Sub	Copper Alloy	Housing/Shell (Unthreaded)	Coax Signal	2		Free Hanging (In-Line)	1 (DE E) - 5W1	UL94 V-0	Gold		Receptacle Female Sockets	Flash	Polyester Thermoplastic	-55 °C	125 °C	Shielded	Black	125 VDC		4	1
EDAC Inc. 628-5W1-224-5ND	Combo D-Sub	Copper Alloy	Board Side (M3)	Coax Signal	2		Through Hole	1 (DE E) - 5W1	UL94 V-0	Gold	Solder	Receptacle Female Sockets	Flash	Polyester Thermoplastic	-55 °C	125 °C	Board Lock Shielded	Black	125 VDC		4	1	Nickel Plated Steel
EDAC Inc. 628-5W1-624-4N2	Combo D-Sub	Copper Alloy	4-40 Board Side	Signal and Power	2	5	Through Hole	1 (DE E) - 5W1	UL94 V-0	Gold	Solder	Receptacle Female Sockets		Polyester Thermoplastic	-55 °C	125 °C	Shielded	Black	125 VDC	5 A 40 A			Nickel Plated Steel	0.76 Ám	30 Áin
EDAC Inc. 628-5W1-222-5TA	Combo D-Sub	Copper Alloy	Board Side (M3)	Coax Signal	2		Free Hanging (In-Line)	1 (DE E) - 5W1	UL94 V-0	Gold		Receptacle Female Sockets	Flash	Polyester Thermoplastic	-55 °C	125 °C	Shielded	Black	125 VDC		4	1
EDAC Inc. 628-5W1-222-7N1	Combo D-Sub	Copper Alloy	Housing/Shell (Unthreaded)	Coax Signal	2		Free Hanging (In-Line)	1 (DE E) - 5W1	UL94 V-0	Gold		Receptacle Female Sockets	Flash	Polyester Thermoplastic	-55 °C	125 °C	Shielded	Black	125 VDC		4	1	Nickel Plated Steel
EDAC Inc. 628-5W1-624-4TE	Combo D-Sub	Copper Alloy	M3	Signal and Power	2	5	Through Hole	1 (DE E) - 5W1	UL94 V-0	Gold	Solder	Receptacle Female Sockets		Polyester Thermoplastic	-55 °C	125 °C	Board Lock Shielded	Black	125 VDC	5 A 40 A				0.76 Ám	30 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	400	$ 8.30
LCSC	Piece	1	$ 18.04
		200	$ 6.98
		400	$ 6.74
		800	$ 6.61

Description

General part information

628-5W1 Series

5 (4 + 1 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
