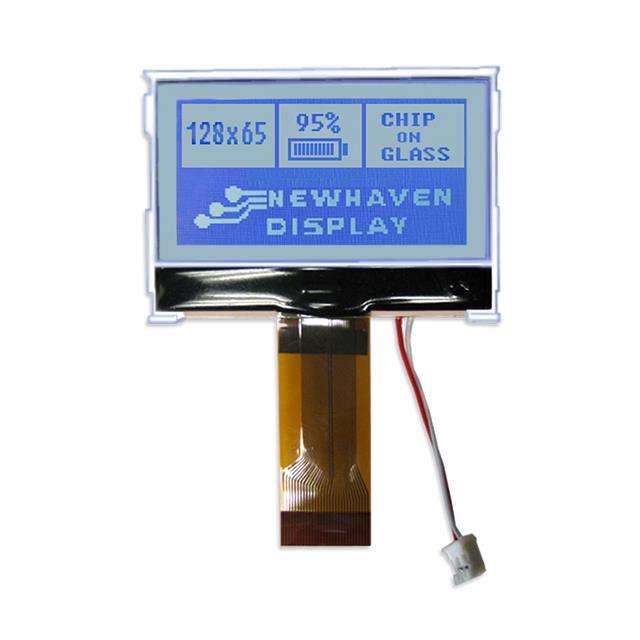

NHD-C12865AR-FSW-GBW
ActiveNewhaven Display Intl
LCD COG GRAPH 128X65 TRANSFL
Deep-Dive with AI
Search across all available documentation for this part.
NHD-C12865AR-FSW-GBW
ActiveNewhaven Display Intl
LCD COG GRAPH 128X65 TRANSFL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NHD-C12865AR-FSW-GBW |
|---|---|
| Background Color | Gray |
| Backlight | LED - White |
| Controller Type | ST7565R |
| Display Mode | Transflective |
| Display Type | STN - Super-Twisted Nematic |
| Dot Pixels [x] | 128 |
| Dot Pixels [y] | 65 |
| Dot Size [custom] | 0.35 mm |
| Dot Size [custom] | 0.35 mm |
| Graphics Color | Blue |
| Interface | Parallel/Serial |
| Viewing Area [x] | 52.6 mm |
| Viewing Area [y] | 27 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 17.10 | |
| 5 | $ 16.07 | |||
| 10 | $ 15.05 | |||
| 50 | $ 14.19 | |||
| 100 | $ 13.51 | |||
| 250 | $ 12.83 | |||
| 500 | $ 12.51 | |||
Description
General part information
NHD-C12865 Series
Graphic LCD Display Module Transflective Blue (Gray - Inverted) STN - Super-Twisted Nematic Parallel/Serial 128 x 65
