3211822

Active

Phoenix Contact

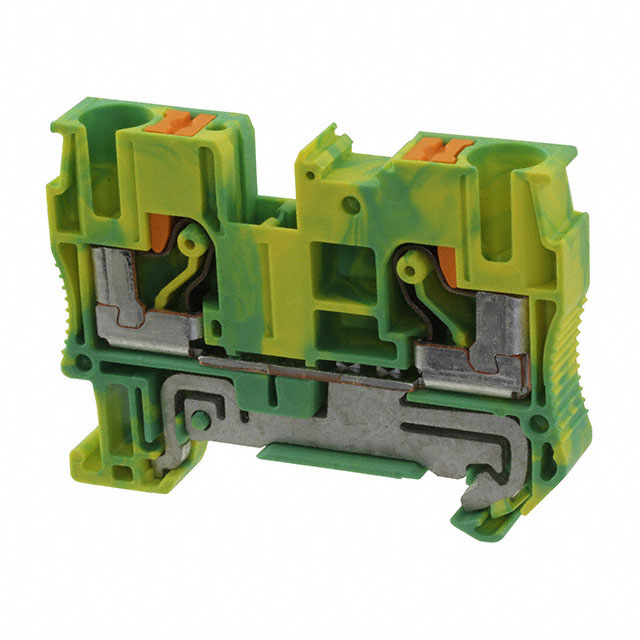

DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 20 AWG, 8 AWG, 10 MM², PUSH IN, 52 A

Search across all available documentation for this part.

Active

Phoenix Contact

DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 20 AWG, 8 AWG, 10 MM², PUSH IN, 52 A

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3211822	PT Series

Accessory Type	-	Base
Color	Green, Yellow	Green, Yellow
Contact Mating Finish	-	Tin
Current - IEC	-	10 A
Current - UL	-	10 A
For Use With/Related Products	-	PT, Surge Protector
Height (Max)	-	39.5 mm
Height (Max)	-	1.555 in
Housing Color	-	Green, Yellow
Housing Material	-	Polyamide (PA), Nylon
Insulation Height	-	13.15 mm
Insulation Height	-	0.518 "
Length	-	55 mm
Length	-	2.165 in
Material - Insulation	Nylon, Polyamide (PA)	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	-	Free Hanging (In-Line), DIN Rail
Number of Levels	1	1
Number of Positions	2	2 - 9
Pitch	-	5 mm
Pitch	-	0.197 in
Plug Wire Entry	-	90 °
Positions Per Level	-	9
Stripping Length	-	8 mm
Stripping Length [x]	12 mm	12 mm
Terminal - Width [y]	8.2 mm	3.5 - 8.2 mm
Termination Style	Push In, Spring	Screw - Rising Cage Clamp, Plug Receptacles, Push In, Spring
Torque - Screw	-	3.5 Lb-In
Torque - Screw	-	3.1 Lb-In
Torque - Screw	-	0.4 Nm
Torque - Screw	-	0.35 Nm
Type	Ground, Earth	Plug for Unshrouded Header, Plug Connection, Ground, Earth
Voltage - IEC	-	630 V
Voltage - UL	-	300 V
Wire Gauge or Range - AWG [Max]	20 AWG	20 - 28 AWG
Wire Gauge or Range - AWG [Min]	8 AWG	8 - 14 AWG
Wire Gauge or Range - mm² [Max]	10 mm²	1.5 - 10 mm²
Wire Gauge or Range - mm² [Min]	0.5 mm²	0.14 - 0.5 mm²
Wire Strip Length	-	6 mm

Pluggable Terminal Blocks 10 Pos 5mm pitch Plug 26-14 AWG Screw

Part	Pitch [x]	Pitch [x]	Housing Material	Insulation Height	Insulation Height	Contact Mating Finish	Type	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Max]	Torque - Screw [Min]	Mounting Type	Number of Levels	Plug Wire Entry	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Color	Positions Per Level	Voltage - UL	Wire Strip Length	Current - UL	Number of Positions	Material Flammability Rating	Termination Style	Current - IEC	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Voltage - IEC	Housing Color	Terminal - Width [y]	Height (Max) [Max]	Height (Max) [Max]	Stripping Length	Length [x]	Length [x]	Material - Insulation	For Use With/Related Products	Accessory Type	Stripping Length [x]
Phoenix Contact 1755651	5 mm	0.197 in	Polyamide (PA), Nylon	13.15 mm	0.518 "	Tin	Plug for Unshrouded Header	3.5 Lb-In	3.1 Lb-In	0.4 Nm	0.35 Nm	Free Hanging (In-Line)	1	90 °	0.2 mm²	2.5 mm²	Green	9	300 V	6 mm	10 A	9	UL94 V-0	Screw - Rising Cage Clamp	10 A	14 AWG	28 AWG	630 V
Phoenix Contact 3212374							Plug Connection					DIN Rail	1		0.14 mm²	1.5 mm²							UL94 V-0	Plug Receptacles, Push In, Spring		14 AWG	26 AWG		Green, Yellow	3.5 mm	39.5 mm	1.555 in	8 mm	55 mm	2.165 in	Nylon, Polyamide (PA)
Phoenix Contact 2839415																																					PT, Surge Protector	Base
Phoenix Contact 3211822							Ground, Earth						1		0.5 mm²	10 mm²	Green, Yellow					2	UL94 V-0	Push In, Spring		8 AWG	20 AWG			8.2 mm						Nylon, Polyamide (PA)			12 mm
