PFSM.150.2

Active

SCHURTER Inc.

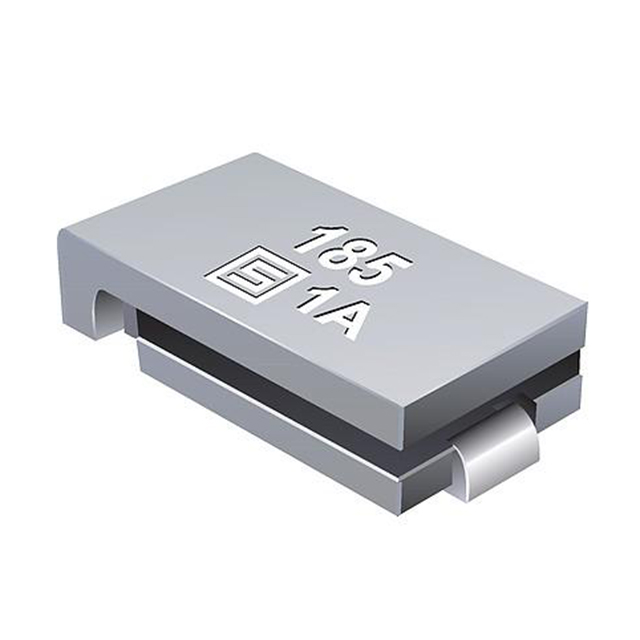

PTC RESET FUSE 15V 1.5A 2SMD

Search across all available documentation for this part.

Active

SCHURTER Inc.

PTC RESET FUSE 15V 1.5A 2SMD

Technical Specifications

Parameters and characteristics for this part

Specification	PFSM.150.2

Approval Agency	cURus, TUV
Current - Hold (Ih) (Max) [Max]	1.5 A
Current - Max [Max]	100 A
Current - Trip (It)	3 A
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	2-SMD
Qualification	AEC-Q200
Resistance - Initial (Ri) (Min) [Min]	60 mOhms
Resistance - Post Trip (R1) (Max) [Max]	250 mOhms
Size / Dimension [x]	8.75 mm
Size / Dimension [x]	0.344 in
Size / Dimension [y]	0.264 in
Size / Dimension [y]	6.71 mm
Thickness (Max) [Max]	0.118 "
Thickness (Max) [Max]	3 mm
Time to Trip	5 s
Type	Polymeric
Voltage - Max [Max]	15 V

PTC RESET FUSE 15V 1.5A 2SMD

Part	Current - Max [Max]	Package / Case	Current - Trip (It)	Current - Hold (Ih) (Max) [Max]	Mounting Type	Resistance - Post Trip (R1) (Max) [Max]	Time to Trip	Approval Agency	Qualification	Grade	Resistance - Initial (Ri) (Min) [Min]	Thickness (Max) [Max]	Thickness (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Max [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Type
SCHURTER Inc. PFSM.150.2	100 A	2-SMD	3 A	1.5 A	Surface Mount	250 mOhms	5 s	cURus, TUV	AEC-Q200	Automotive	60 mOhms	0.118 "	3 mm	85 °C	-40 °C	15 V	8.75 mm	0.264 in	6.71 mm	0.344 in	Polymeric

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.57
	Digi-Reel®	1	$ 0.57
	Tape & Reel (TR)	1500	$ 0.34

General part information

Polymeric PTC Resettable Fuse 15V 1.5 A Ih Surface Mount 2-SMD
