PE44068
ActivePasternack

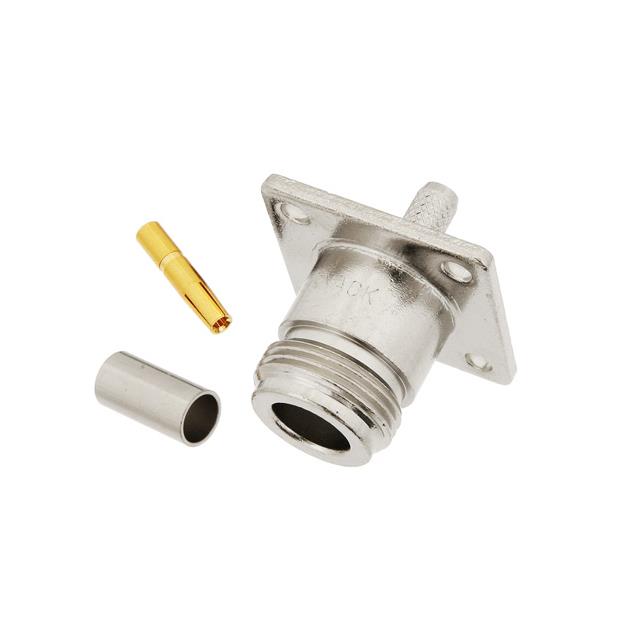

N FEMALE CONNECTOR CRIMP/SOLDER
PE44068
ActivePasternack
N FEMALE CONNECTOR CRIMP/SOLDER
Description
General part information
PE44068
N Type Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | PE44068 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | RG-55, 142, 223, 141, 58, 400 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | N Type |
| Connector Type | Recepture, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 11 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount |
| Number of Ports | 1 |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Shield Termination | Crimp |
| Voltage Rating | 1000 V |
