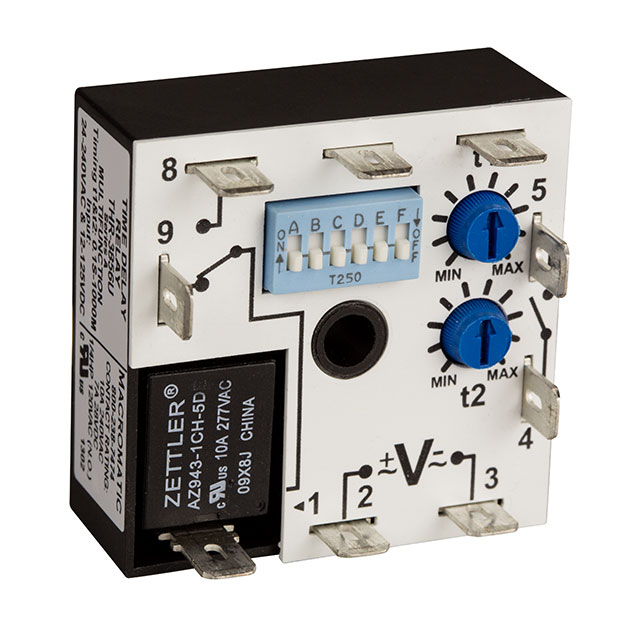

THR-3856U

Active

Macromatic Industrial Controls

RELAY TIME DELAY 100MIN 10A 240V

Search across all available documentation for this part.

Active

Macromatic Industrial Controls

RELAY TIME DELAY 100MIN 10A 240V

Technical Specifications

Parameters and characteristics for this part

Specification	THR-3856U

Contact Rating @ Voltage	10 A, 240 VAC, 28 VDC
Delay Time [Max]	100 Min
Delay Time [Min]	0.1 Sec
Function	Programmable (Multi-Function)
Mounting Type	Chassis Mount
Relay Type	Mechanical Relay
Termination Style	Quick Connect
Timing Adjustment Method	DIP Switches
Timing Initiate Method	Trigger Signal, Input Voltage
Voltage - Supply [Max]	240 VAC, 125 VDC
Voltage - Supply [Min]	24 VAC, 12 V

Part	Mounting Type	Function	Termination Style	Contact Rating @ Voltage	Voltage - Supply [Max]	Voltage - Supply [Min]	Timing Adjustment Method	Relay Type	Delay Time [Max]	Delay Time [Min]	Timing Initiate Method
Macromatic Industrial Controls THR-3856U	Chassis Mount	Programmable (Multi-Function)	Quick Connect	10 A 28 VDC 240 VAC	125 VDC 240 VAC	12 V 24 VAC	DIP Switches	Mechanical Relay	100 Min	0.1 Sec	Input Voltage Trigger Signal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 97.94

General part information

Programmable (Multi-Function) Time Delay Relay SPDT (1 Form C) 0.1 Sec ~ 100 Min Delay 10A @ 240VAC/28VDC Chassis Mount
