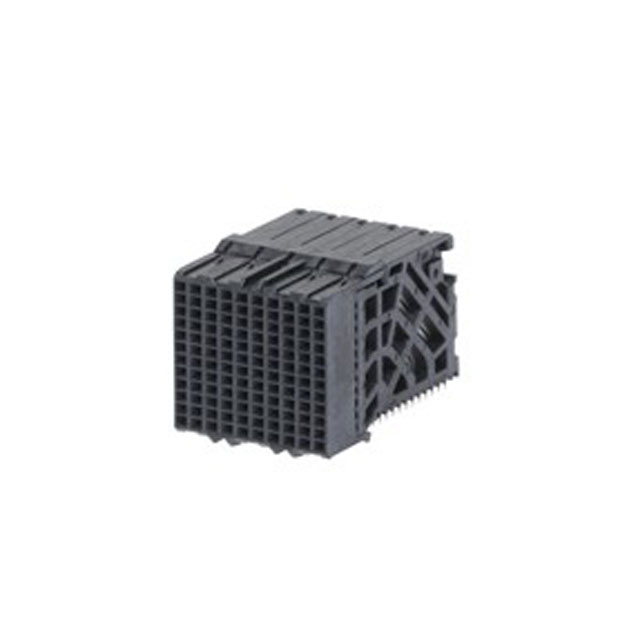

Specification	0761601036

Color	Black
Connector Style	Impact
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	30 µin
Differential Pairs (Typical)	24
Features	Board Guide
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Through Hole, Board Edge
Number of Columns	6
Number of Positions	72
Number of Positions Loaded	All
Number of Rows	12
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Pitch	0.053 in
Termination	Press-Fit
Voltage Rating	30 V

076160 Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Material Flammability Rating	Voltage Rating	Number of Positions Loaded	Features	Number of Columns	Mounting Type	Connector Type	Number of Positions	Contact Finish Thickness	Color	Termination	Connector Style	Number of Rows	Contact Finish	Pitch	Differential Pairs (Typical)
Molex 0761603126	-55 °C	85 °C	UL94 V-0	30 V	All	Board Guide	16	Board Edge Right Angle Through Hole	Female Sockets Receptacle	192	30 µin	Black	Press-Fit	Guide Left Impact	12	Gold	0.053 in
Molex 0761600016	-55 °C	85 °C	UL94 V-0	30 V	All	Board Guide	16	Board Edge Right Angle Through Hole	Female Sockets Receptacle	192	30 µin	Black	Press-Fit	Impact	12	Gold	0.053 in	64
Molex 0761604026	-55 °C	85 °C	UL94 V-0	30 V	All	Board Guide	16	Board Edge Right Angle Through Hole	Female Sockets Receptacle	192	30 µin	Black	Press-Fit	Guide Right Impact	12	Gold	0.053 in	64
Molex 0761603016	-55 °C	85 °C	UL94 V-0	30 V	All	Board Guide	16	Board Edge Right Angle Through Hole	Female Sockets Receptacle	192	30 µin	Black	Press-Fit	Guide Left Impact	12	Gold	0.053 in	64

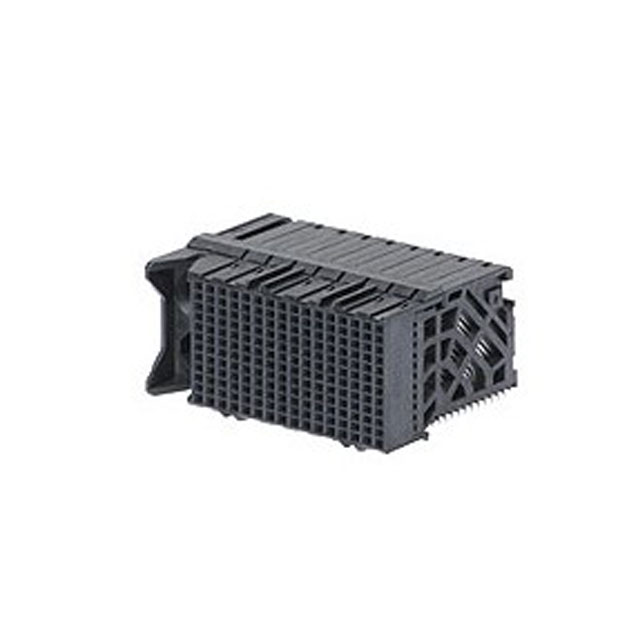

Molex 0761603036	-55 °C	85 °C	UL94 V-0	30 V	All	Board Guide	6	Board Edge Right Angle Through Hole	Female Sockets Receptacle	72	30 µin	Black	Press-Fit	Guide Left Impact	12	Gold	0.053 in	24
Molex 0761605126	-55 °C	85 °C	UL94 V-0	30 V	All	Board Guide	16	Board Edge Right Angle Through Hole	Female Sockets Receptacle	192	30 µin	Black	Press-Fit	Guide Right Impact	12	Gold	0.053 in	64
Molex 0761601006	-55 °C	85 °C	UL94 V-0	30 V	All	Board Guide	6	Board Edge Right Angle Through Hole	Female Sockets Receptacle	72	30 µin	Black	Press-Fit	Impact	12	Gold	0.053 in

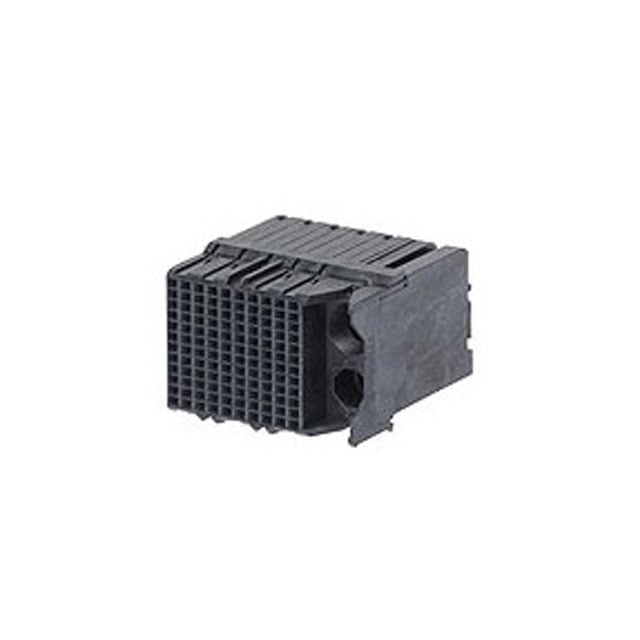

Molex 0761605120	-55 °C	85 °C	UL94 V-0	30 V	All	Board Guide	10	Board Edge Right Angle Through Hole	Female Sockets Receptacle	120	30 µin	Black	Press-Fit	Guide Right Impact	12	Gold	0.053 in	40
Molex 0761604010	-55 °C	85 °C	UL94 V-0	30 V	All	Board Guide	10	Board Edge Right Angle Through Hole	Female Sockets Receptacle	120	30 µin	Black	Press-Fit	Guide Right Impact	12	Gold	0.053 in	40
Molex 0761601038	-55 °C	85 °C	UL94 V-0	30 V	All	Board Guide	8	Board Edge Right Angle Through Hole	Female Sockets Receptacle	96	30 µin	Black	Press-Fit	Impact	12	Gold	0.053 in	32
