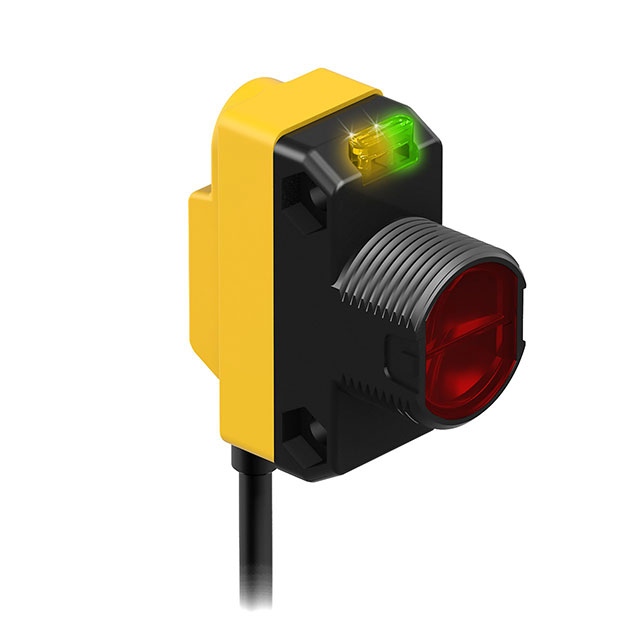

Specification	QS18VP6FF100

Cable Length	78.74 in
Connection Method	Cable
Ingress Protection	NEMA 6P, IEC IP67, IP67, IEC
Light Source	LED
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-20 °C
Output Configuration	Light-ON, PNP - Dark-ON
Response Time	850 µs
Sensing Distance	3.937 "
Sensing Method	Background Suppression
Voltage - Supply (Maximum)	30 VDC
Voltage - Supply (Minimum)	10 VDC

QS18VP6 Series

Part	Ingress Protection	Output Configuration	Connection Method	Sensing Method	Response Time	Sensing Distance	Operating Temperature (Min)	Operating Temperature (Max)	Light Source	Adjustment Type	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Light Source Wavelength (Red)	Cable Length	Light Source Wavelength (Infrared)
BANNER ENGINEERING QS18VP6LDQ8	IEC IEC IP67 IP67 NEMA 6P	Light-ON PNP - Dark-ON	Connector	Diffuse	700 µs	11.811 "	-10 °C	50 °C	LED	Adjustable Potentiometer	10 VDC	30 VDC
BANNER ENGINEERING QS18VP6LVQ5	IEC IEC IP67 IP67 NEMA 6P	Light-ON PNP - Dark-ON	Connector	NonPolarized Retroreflective	600 µs	255.906 "	-20 °C	70 °C	Red LED	Adjustable Potentiometer	10 VDC	30 VDC
BANNER ENGINEERING QS18VP6LPQ9	IEC IEC IP67 IP67 NEMA 6P	Light-ON PNP - Dark-ON	Connector	Polarized Retroreflective	600 µs	137.795 "	-20 °C	70 °C	Red LED	Adjustable Potentiometer	10 VDC	30 VDC
BANNER ENGINEERING QS18VP6AF250Q8	IP67 NEMA 6P	Light-ON PNP - Dark-ON	Connector	Background Suppression	2.8 ms	9.843 "	-40 °C	60 °C	Red	Adjustable Potentiometer	10 VDC	30 VDC	640 nm
BANNER ENGINEERING QS18VP6FQ	IEC IEC IP67 IP67 NEMA 6P	Dark-ON Light-ON Light-ON - Selectable PNP PNP - Dark-ON Selectable	Connector	Background Suppression	600 µs	1.969 "	-20 °C	70 °C		Adjustable Potentiometer	10 VDC	30 VDC
BANNER ENGINEERING QS18VP6LVQ8	IEC IEC IP67 IP67 NEMA 6P	Light-ON PNP - Dark-ON	Connector	NonPolarized Retroreflective	600 µs	255.906 "	-20 °C	70 °C	Red LED	Adjustable Potentiometer	10 VDC	30 VDC
BANNER ENGINEERING QS18VP6FF50	IEC IEC IP67 IP67 NEMA 6P	Light-ON PNP - Dark-ON	Cable	Background Suppression	850 µs	1.969 "	-20 °C	70 °C	LED		10 VDC	30 VDC		78.74 in
BANNER ENGINEERING QS18VP6WQ7	IEC IEC IP67 IP67 NEMA 6P	Dark-ON Light-ON Light-ON - Selectable PNP PNP - Dark-ON Selectable	Connector	Diffuse	600 µs	3.937 "	-20 °C	70 °C	Infrared		10 VDC	30 VDC
BANNER ENGINEERING QS18VP6XLP	IEC IP67 NEMA 6P	Dark-ON Light-ON Light-ON - Selectable PNP PNP - Dark-ON Selectable	Cable	Polarized Retroreflective	400 µs	118.11 "	-40 °C	70 °C	Red	Adjustable Potentiometer	10 VDC	30 VDC	625 nm	78.74 in
BANNER ENGINEERING QS18VP6DL	IEC IEC IP67 IP67 NEMA 6P	Dark-ON Light-ON Light-ON - Selectable PNP PNP - Dark-ON Selectable	Cable	Diffuse	850 µs	23.622 "	-20 °C	70 °C	Infrared	Adjustable Potentiometer	10 VDC	30 VDC		78.74 in	940 nm
