83049 0041000

Active

Belden Inc.

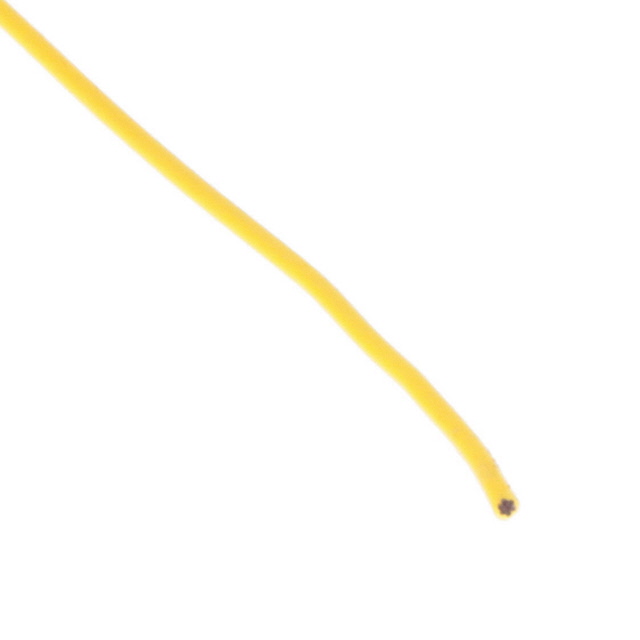

HOOK-UP STRND 22AWG YELLOW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Cabling Solutions for Industrial Applications

83049 0041000

Active

Belden Inc.

HOOK-UP STRND 22AWG YELLOW

Deep-Dive with AI

DocumentsDatasheet Cabling Solutions for Industrial Applications

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	83049 0041000

Cable Type	Hook-Up
Conductor Material	Copper, Silver Coated
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	High Temperature
Jacket (Insulation) Diameter [diameter]	1.07 mm
Jacket (Insulation) Diameter [diameter]	0.042 in
Jacket (Insulation) Material	Tetrafluoroethylene (TFE)
Jacket (Insulation) Thickness	0.006 in
Jacket (Insulation) Thickness	0.15 mm
Jacket Color	Yellow
Length	1000 ft
Length	304.8 m
Qualification	MIL-W-16878/6
Ratings	UL Style 1371
Voltage	250 V
Wire Gauge	22 AWG

83049 Series

Part	Length [x]	Length [x]	Jacket (Insulation) Material	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Cable Type	Jacket Color	Voltage	Wire Gauge	Qualification	Ratings	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Operating Temperature
Belden Inc. 83049 007100	30.5 m	100 ft	Tetrafluoroethylene (TFE)	High Temperature	1.07 mm	0.042 in	0.006 in	0.15 mm	Copper Silver Coated	Hook-Up	Violet	250 V	22 AWG	MIL-W-16878/6	UL Style 1371	7	30 AWG
Belden Inc. 83049 0101000			Tetrafluoroethylene (TFE)	High Temperature	1.07 mm	0.042 in	0.006 in	0.15 mm	Copper Silver Coated	Hook-Up	Black	250 V	22 AWG	MIL-W-16878/6	UL Style 1371	7	30 AWG	1000 ft	304.8 m
Belden Inc. 83049 010100	30.5 m	100 ft	Tetrafluoroethylene (TFE)	High Temperature	1.07 mm	0.042 in	0.006 in	0.15 mm	Copper Silver Coated	Hook-Up	Black	250 V	22 AWG	MIL-W-16878/6	UL Style 1371	7	30 AWG			200 °C
Belden Inc. 83049 004100	30.5 m	100 ft	Tetrafluoroethylene (TFE)	High Temperature	1.07 mm	0.042 in	0.006 in	0.15 mm	Copper Silver Coated	Hook-Up	Yellow	250 V	22 AWG	MIL-W-16878/6	UL Style 1371	7	30 AWG
Belden Inc. 83049 0021000			Tetrafluoroethylene (TFE)	High Temperature	1.07 mm	0.042 in	0.006 in	0.15 mm	Copper Silver Coated	Hook-Up	Red	250 V	22 AWG	MIL-W-16878/6	UL Style 1371	7	30 AWG	1000 ft	304.8 m
Belden Inc. 83049 0041000			Tetrafluoroethylene (TFE)	High Temperature	1.07 mm	0.042 in	0.006 in	0.15 mm	Copper Silver Coated	Hook-Up	Yellow	250 V	22 AWG	MIL-W-16878/6	UL Style 1371	7	30 AWG	1000 ft	304.8 m
Belden Inc. 83049 005100	30.5 m	100 ft	Tetrafluoroethylene (TFE)	High Temperature	1.07 mm	0.042 in	0.006 in	0.15 mm	Copper Silver Coated	Hook-Up	Green	250 V	22 AWG	MIL-W-16878/6	UL Style 1371	7	30 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.10

Description

General part information

83049 Series

22 AWG Hook-Up Wire 7/30 Yellow 250V 1000.0' (304.8m)
