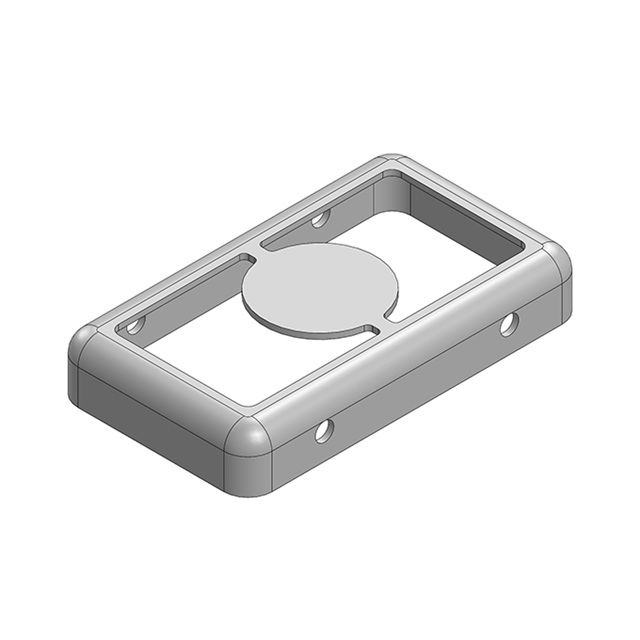

MS183-10F
ActiveMasach Tech Ltd.
RF SHIELD 0.413"X0.720" SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
MS183-10F
ActiveMasach Tech Ltd.
RF SHIELD 0.413"X0.720" SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS183-10F | MS183 Series |
|---|---|---|
| Height - Overall | 3 mm | 3 mm |
| Height - Overall [z] | 0.118 in | 0.118 in |
| Length - Overall [x] | 0.72 in | 0.72 in |
| Length - Overall [x] | 18.3 mm | 18.3 mm |
| Mounting Type | Solder | Solder, Snap Fit |
| Type | Frame | Shield, 1-Piece, Frame, Cover |
| Ventilation | - | Non-Vented |
| Width - Overall [y] | 10.5 mm | 10.5 - 11.1 mm |
| Width - Overall [y] | 0.413 in | 0.413 - 0.437 in |
MS183 Series
RF SHIELD 0.413"X0.720" SOLDER
| Part | Width - Overall [y] | Width - Overall [y] | Ventilation | Type | Length - Overall [x] | Length - Overall [x] | Mounting Type | Height - Overall [z] | Height - Overall |
|---|---|---|---|---|---|---|---|---|---|
Masach Tech Ltd. MS183-10S | 10.5 mm | 0.413 in | Non-Vented | Shield, 1-Piece | 0.72 in | 18.3 mm | Solder | 0.118 in | 3 mm |
Masach Tech Ltd. MS183-10F | 10.5 mm | 0.413 in | Frame | 0.72 in | 18.3 mm | Solder | 0.118 in | 3 mm | |
Masach Tech Ltd. MS183-10C | 11.1 mm | 0.437 in | Non-Vented | Cover | Snap Fit | 0.118 in | 3 mm | ||
Masach Tech Ltd. MS183-10C-NS | 11.1 mm | 0.437 in | Non-Vented | Cover | Snap Fit | 0.118 in | 3 mm | ||
Masach Tech Ltd. MS183-10S-NS | 10.5 mm | 0.413 in | Non-Vented | Shield, 1-Piece | 0.72 in | 18.3 mm | Solder | 0.118 in | 3 mm |
Masach Tech Ltd. MS183-10F-NS | 10.5 mm | 0.413 in | Frame | 0.72 in | 18.3 mm | Solder | 0.118 in | 3 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.30 | |
| 10 | $ 1.16 | |||
| 25 | $ 1.10 | |||
| 132 | $ 0.91 | |||
| 264 | $ 0.85 | |||
| 528 | $ 0.75 | |||
| 1056 | $ 0.59 | |||
| 2508 | $ 0.55 | |||
| 5016 | $ 0.52 | |||
Description
General part information
MS183 Series
RF Shield Frame 0.413" (10.50mm) X 0.720" (18.30mm) Solder
