Specification	MCP4262T-104E/MF

Configuration	Rheostat
Interface	SPI
Memory Type	Non-Volatile
Mounting Type	Surface Mount
Number of Circuits	2
Number of Taps	257
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C

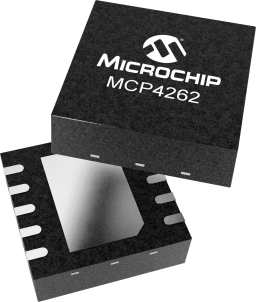

Package / Case	10-VFDFN Exposed Pad
Package Length	3 mm
Package Name	10-DFN
Package Width	3 mm
Resistance	100 kOhm
Resistance - Wiper (Typ)	75 Ohm
Taper	Linear
Temperature Coefficient (Typ)	150 ppm/°C
Tolerance	20 %
Voltage - Supply (Maximum)	5.5 V
Voltage - Supply (Minimum)	1.8 V

mcp4262 Series

Part	Resistance - Wiper (Typ)	Temperature Coefficient (Typ)	Tolerance	Number of Circuits	Number of Taps	Operating Temperature (Max)	Operating Temperature (Min)	Package Name	Configuration	Taper	Package Length	Package Width	Interface	Mounting Type	Resistance	Memory Type	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Package / Case
Microchip Technology MCP4262T-103E/UN	75 Ohm	150 ppm/°C	20 %	2	257	125 °C	-40 °C	10-MSOP 10-TFSOP	Rheostat	Linear	0.118 in	3 mm	SPI	Surface Mount	10 kOhm	Non-Volatile	5.5 V	1.8 V
Microchip Technology MCP4262-503E/UN	75 Ohm	150 ppm/°C	20 %	2	257	125 °C	-40 °C	10-MSOP 10-TFSOP	Rheostat	Linear	0.118 in	3 mm	SPI	Surface Mount	50 kOhm	Non-Volatile	5.5 V	1.8 V
Microchip Technology MCP4262-103E/UN	75 Ohm	150 ppm/°C	20 %	2	257	125 °C	-40 °C	10-MSOP 10-TFSOP	Rheostat	Linear	0.118 in	3 mm	SPI	Surface Mount	10 kOhm	Non-Volatile	5.5 V	1.8 V
Microchip Technology MCP4262T-104E/UN	75 Ohm	150 ppm/°C	20 %	2	257	125 °C	-40 °C	10-MSOP 10-TFSOP	Rheostat	Linear	0.118 in	3 mm	SPI	Surface Mount	100 kOhm	Non-Volatile	5.5 V	1.8 V
Microchip Technology MCP4262-104E/UN	75 Ohm	150 ppm/°C	20 %	2	257	125 °C	-40 °C	10-MSOP 10-TFSOP	Rheostat	Linear	0.118 in	3 mm	SPI	Surface Mount	100 kOhm	Non-Volatile	5.5 V	1.8 V
Microchip Technology MCP4262-502E/UN	75 Ohm	150 ppm/°C	20 %	2	257	125 °C	-40 °C	10-MSOP 10-TFSOP	Rheostat	Linear	0.118 in	3 mm	SPI	Surface Mount	5 kOhm	Non-Volatile	5.5 V	1.8 V
Microchip Technology MCP4262T-503E/UN	75 Ohm	150 ppm/°C	20 %	2	257	125 °C	-40 °C	10-MSOP 10-TFSOP	Rheostat	Linear	0.118 in	3 mm	SPI	Surface Mount	50 kOhm	Non-Volatile	5.5 V	1.8 V
Microchip Technology MCP4262-503E/MF	75 Ohm	150 ppm/°C	20 %	2	257	125 °C	-40 °C	10-DFN	Rheostat	Linear	3 mm	3 mm	SPI	Surface Mount	50 kOhm	Non-Volatile	5.5 V	1.8 V	10-VFDFN Exposed Pad
Microchip Technology MCP4262T-502E/UN	75 Ohm	150 ppm/°C	20 %	2	257	125 °C	-40 °C	10-MSOP 10-TFSOP	Rheostat	Linear	0.118 in	3 mm	SPI	Surface Mount	5 kOhm	Non-Volatile	5.5 V	1.8 V
Microchip Technology MCP4262-502E/MF	75 Ohm	150 ppm/°C	20 %	2	257	125 °C	-40 °C	10-DFN	Rheostat	Linear	3 mm	3 mm	SPI	Surface Mount	5 kOhm	Non-Volatile	5.5 V	1.8 V	10-VFDFN Exposed Pad
