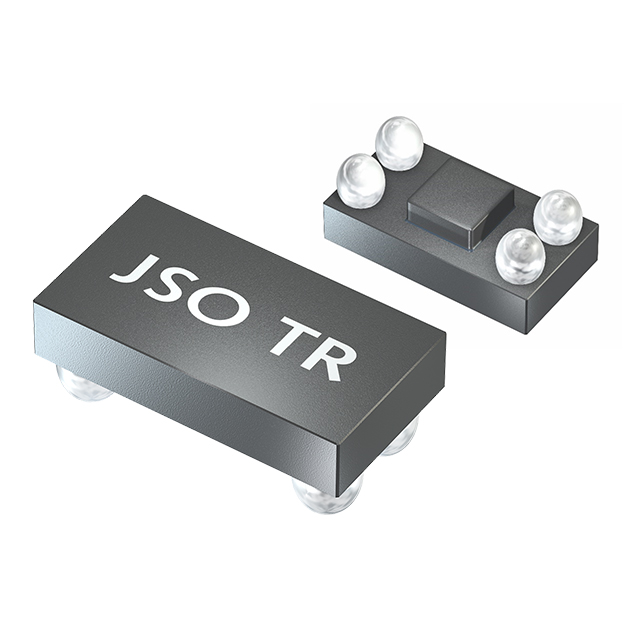

O 0,032768-JSO15B1TR-F-1V3-T1-RR-D
ObsoleteJauch Quartz
MEMS OSC TCXO 32.7680KHZ LVCMOS
O 0,032768-JSO15B1TR-F-1V3-T1-RR-D
ObsoleteJauch Quartz
MEMS OSC TCXO 32.7680KHZ LVCMOS
Description
General part information
O 0,032768-JSO15B1TR-F-1V3-T1-RR-D
32.768 kHz TCXO LVCMOS Oscillator 1.5V ~ 3.63V 4-UFBGA, CSPBGA
Technical Specifications
Parameters and characteristics for this part
| Specification | O 0,032768-JSO15B1TR-F-1V3-T1-RR-D |
|---|---|
| Base Resonator | MEMS |
| Current - Supply (Max) | 1.2 µA |
| Frequency | 0.032768 MHz |
| Frequency Stability | 5 ppm |
| Height - Seated (Max) | 0.024 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | LVCMOS |
| Package / Case | 4-UFBGA, CSPBGA |
| Size / Dimension Length | 0.061 in |
| Size / Dimension Width | 0.033 in |
| Type | TCXO |
| Voltage - Supply (Maximum) | 3.63 V |
| Voltage - Supply (Minimum) | 1.5 V |
