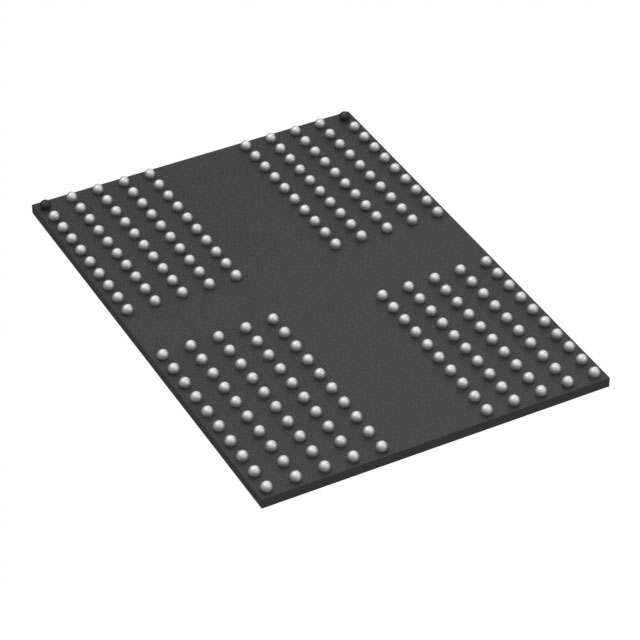

Specification	AS4C512M16MD4V-053BIN

Access Time	3.5 ns
Clock Frequency	1866 MHz
Memory Depth	512 M
Memory Format	DRAM
Memory Interface (Type)	LVSTLE_06
Memory Size	1 GB
Memory Type	Volatile
Memory Width	16 bit
Mounting Type	Surface Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	200-VFBGA
Package Length	10 mm
Package Name	200-FBGA
Package Width	15 mm
Technology	SDRAM - Mobile LPDDR4X
Voltage - Supply (Range 1 Maximum)	1.17 V
Voltage - Supply (Range 1 Minimum)	1.06 V
Voltage - Supply (Range 2 Maximum)	1.95 V
Voltage - Supply (Range 2 Minimum)	1.7 V
Write Cycle Time - Page	18 ns
Write Cycle Time - Word	18 ns

AS4C512 Series

Part	Package / Case	Technology	Operating Temperature (Max)	Operating Temperature (Min)	Write Cycle Time - Word	Write Cycle Time - Page	Clock Frequency	Mounting Type	Memory Width	Memory Depth	Memory Size	Memory Format	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Package Name	Package Width	Package Length	Memory Interface (Type)	Memory Type	Access Time	Voltage - Supply (Range 2 Maximum)	Voltage - Supply (Range 1 Maximum)	Voltage - Supply (Range 2 Minimum)	Voltage - Supply (Range 1 Minimum)
Alliance Memory, Inc. AS4C512M16D3LB-12BINTR	96-TFBGA	SDRAM - DDR3L	95 °C	-40 °C	15 ns	15 ns	800 MHz	Surface Mount	16 bit	512 M	1 GB	DRAM	1.45 V	1.283 V	96-FBGA	9 mm	13.5 mm	Parallel	Volatile	20 ns
Alliance Memory, Inc. AS4C512M16D3LA-10BAN	96-TFBGA	SDRAM - DDR3L	105 °C	-40 °C	15 ns	15 ns	933 MHz	Surface Mount	16 bit	512 M	1 GB	DRAM	1.425 V	1.275 V	96-FBGA	9 mm	13.5 mm	Parallel	Volatile	20 ns
Alliance Memory, Inc. AS4C512M8D4-75BINTR	78-TFBGA	SDRAM - DDR4	95 °C	-40 °C	15 ns	15 ns	1.333 GHz	Surface Mount	8 bit	512 M	4 Gbit	DRAM	1.26 V	1.14 V	78-FBGA	10.6 mm	7.5 mm	POD	Volatile	18 ns
Alliance Memory, Inc. AS4C512M16D3LC-10BINTR	96-TFBGA	SDRAM - DDR3L	95 °C	-40 °C	15 ns	15 ns	933 MHz	Surface Mount	16 bit	512 M	1 GB	DRAM	1.45 V	1.283 V	96-FBGA	13 mm	9 mm	Parallel	Volatile	20 ns
Alliance Memory, Inc. AS4C512M16D4-75BCN	96-TFBGA	SDRAM - DDR4	95 °C	0 °C	15 ns	15 ns	1.333 GHz	Surface Mount	16 bit	512 M	1 GB	DRAM	1.26 V	1.14 V	96-FBGA	13 mm	7.5 mm	Parallel	Volatile	18 ns
Alliance Memory, Inc. AS4C512M32MD4V-046BIN	200-VFBGA	SDRAM - Mobile LPDDR4X	95 °C	-40 °C	18 ns	18 ns	4.266 GHz	Surface Mount	32 bit	512 M	2 GByte	DRAM			200-FBGA	15 mm	10 mm	LVSTLE_06	Volatile	3.5 ns	1.95 V	1.17 V	1.7 V	1.06 V
Alliance Memory, Inc. AS4C512M16D3LA-10BCNTR	96-TFBGA	SDRAM - DDR3L	95 °C	0 °C	15 ns	15 ns	933 MHz	Surface Mount	16 bit	512 M	1 GB	DRAM	1.45 V	1.283 V	96-FBGA	9 mm	13.5 mm	Parallel	Volatile	20 ns
Alliance Memory, Inc. AS4C512M8D4A-75BCN	78-TFBGA	SDRAM - DDR4	95 °C	0 °C	15 ns	15 ns	1.333 GHz	Surface Mount	8 bit	512 M	4 Gbit	DRAM	1.26 V	1.14 V	78-FBGA	11 mm	7.5 mm	POD	Volatile	18 ns
Alliance Memory, Inc. AS4C512M8D4A-75BIN	78-TFBGA	SDRAM - DDR4	95 °C	-40 °C	15 ns	15 ns	1.333 GHz	Surface Mount	8 bit	512 M	4 Gbit	DRAM	1.26 V	1.14 V	78-FBGA	11 mm	7.5 mm	POD	Volatile	18 ns
Alliance Memory, Inc. AS4C512M8D4-83BCN	78-TFBGA	SDRAM - DDR4	95 °C	0 °C	15 ns	15 ns	1.2 GHz	Surface Mount	8 bit	512 M	4 Gbit	DRAM	1.26 V	1.14 V	78-FBGA	10.6 mm	7.5 mm	POD	Volatile	18 ns

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

AS4C512M16MD4V-053BIN | Datasheet
