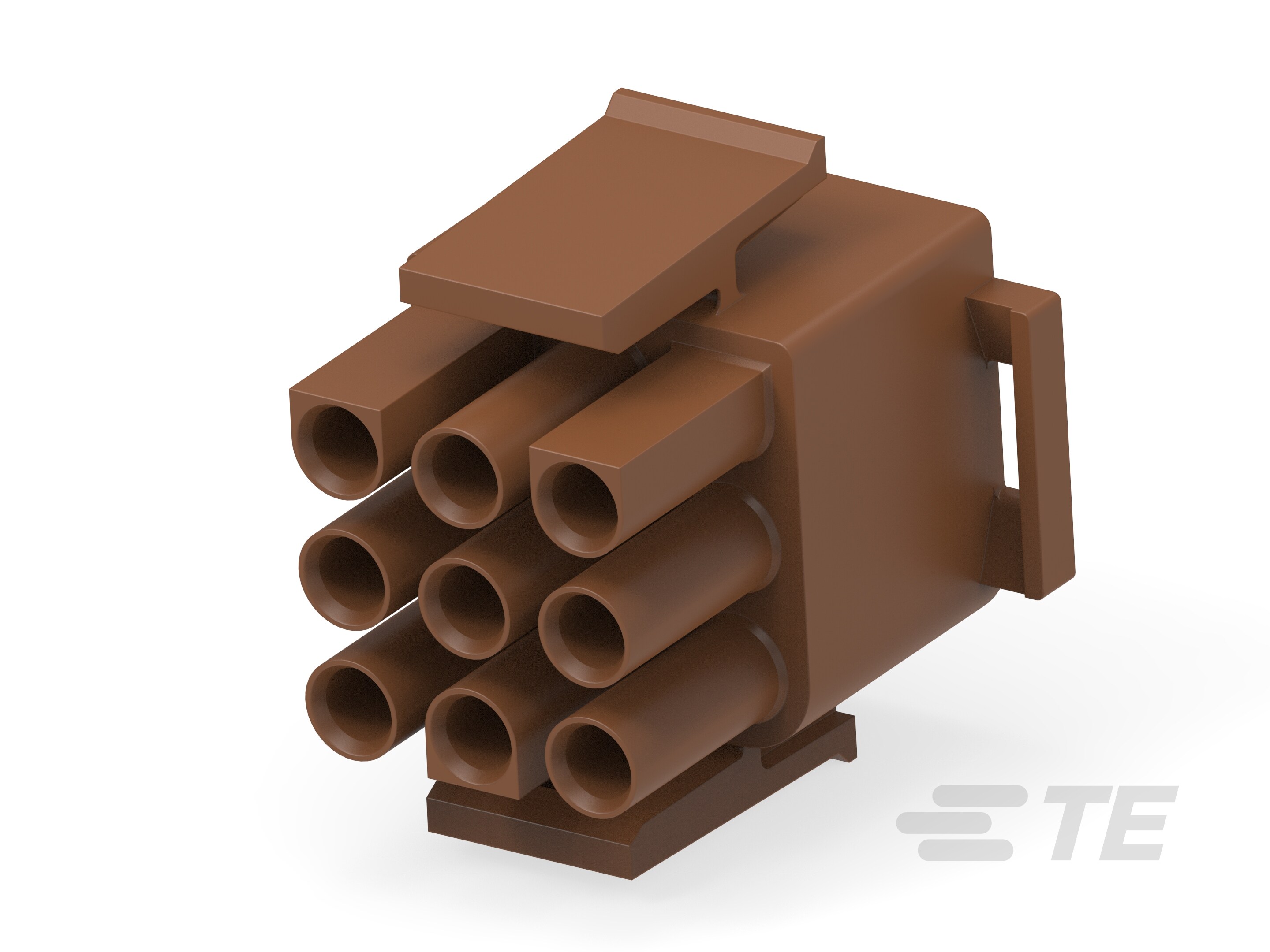

Specification	1-480706-1

Color	Brown
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male or Female, Male, Female
Fastening Type	Latch Lock
Insulation Material	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	9
Number of Rows	3
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Row Spacing	0.25 in

Universal MATE-N-LOK Series

...
