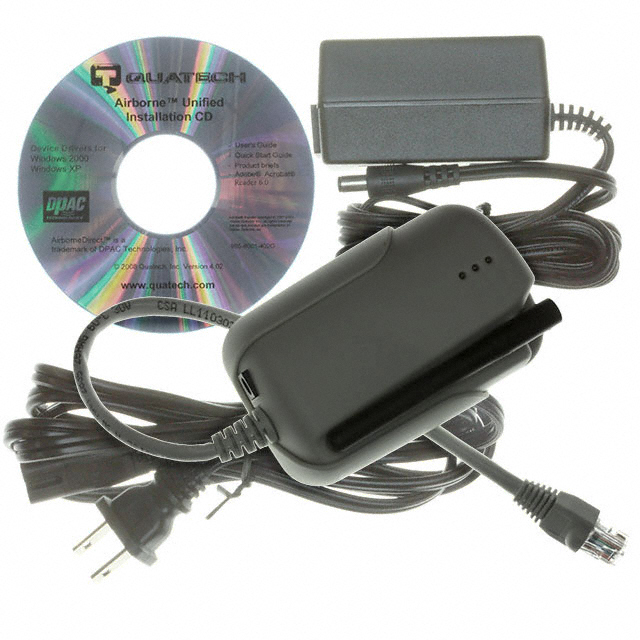

ABDG-ET-DP101-G

Obsolete

Quatech-Division of B&B Electronics

EXTERNAL 802.11B/G ETHERNET BRDG

Search across all available documentation for this part.

Obsolete

Quatech-Division of B&B Electronics

EXTERNAL 802.11B/G ETHERNET BRDG

Technical Specifications

Parameters and characteristics commom to parts in this series

EXTERNAL 802.11B/G ETHERNET BRDG

Part	Interface	Applications	Modulation or Protocol	Sensitivity	Frequency [Min]	Frequency [Max]	Function	Power - Output	Data Rate (Max)	Data Rate (Max) [Max]	Voltage - Supply
Quatech-Division of B&B Electronics ABDG-ET-DP101-G	RJ-45 Ethernet	General Purpose	802.11 b/g	-71 dBm	2.4 GHz	2.48 GHz	Bridge, Transceiver, WLAN	12 dBm	11 Mbps
Quatech-Division of B&B Electronics ABDG-ET-DP501	RJ-45 Ethernet	WLAN	802.11 b/g	-86 dBm	2.4 GHz	2.4835 GHz	Bridge, Transceiver			54 Mbps	5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Transceiver, WLAN, Bridge 2.4GHz ~ 2.48GHz 802.11 b/g RJ-45 Ethernet 11Mbps

Technical documentation and resources

No documents available
