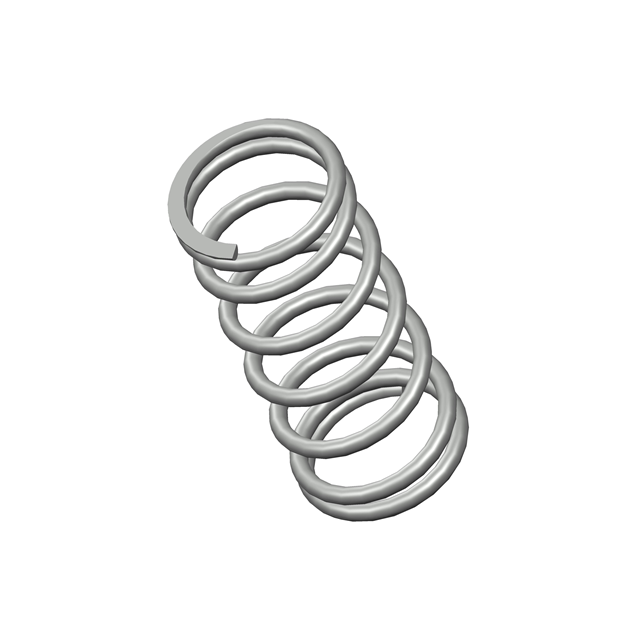

MM-29CS
ActiveCentury Spring Corp
COMP O= .296,L= .69,W= .030
MM-29CS
ActiveCentury Spring Corp
COMP O= .296,L= .69,W= .030
Description
General part information
MM-29CS
COMP O= .296,L= .69,W= .030
Technical Specifications
Parameters and characteristics for this part
| Specification | MM-29CS |
|---|---|
| Diameter - Inside | 0.236 in |
| Diameter - Outside | 0.296 in |
| End Style | Ground, Closed |
| Finish | Zinc |
| Free Length | 0.69 in |
| Material | Music Wire |
| Rate (lbs/in) | 11.2 lbs/in |
| Type | Compression |
| Wire Diameter | 0.03 in |
