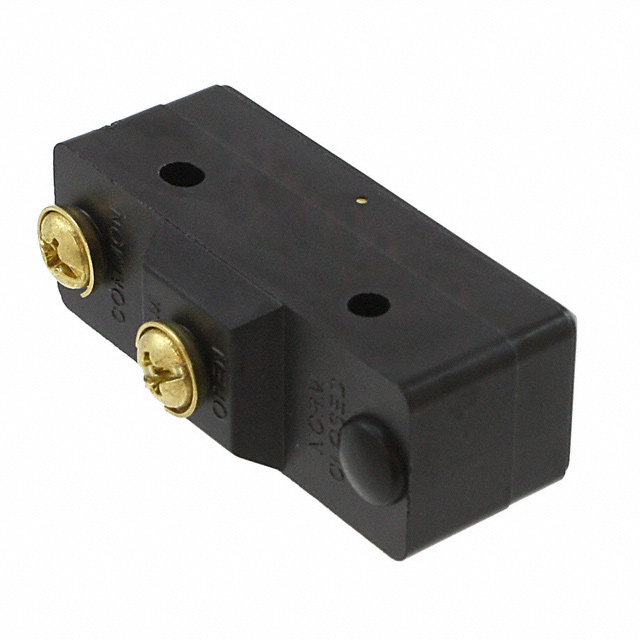

YZ-2R-A2

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPST-NO 15A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPST-NO 15A 125V

Technical Specifications

Parameters and characteristics for this part

SWITCH SNAP ACT SPST-NO 15A 125V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Operating Position	Operating Position	Circuit	Voltage Rating - DC	Operating Force [Max]	Operating Force [Min]	Current Rating (Amps)	Actuator Type	Mounting Type	Release Force	Pretravel	Pretravel	Overtravel	Overtravel	Switch Function	Mechanical Life	Termination Style	Differential Travel	Differential Travel
Honeywell Sensing and Productivity Solutions YZ-2R-A2	85 °C	-55 °C	125 V	0.625 in	15.9 mm	SPST-NO	125 VDC	368 gf	255 gf	15 A, 500 mA	Round (Pin Plunger)	Chassis Mount	113 gf	0.015 in	0.4 mm	0.13 mm	0.005 in	Off-Mom	20000000 Cycles	Screw Terminal	0.002 in	0.05 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Switch SPST-NO Chassis Mount
