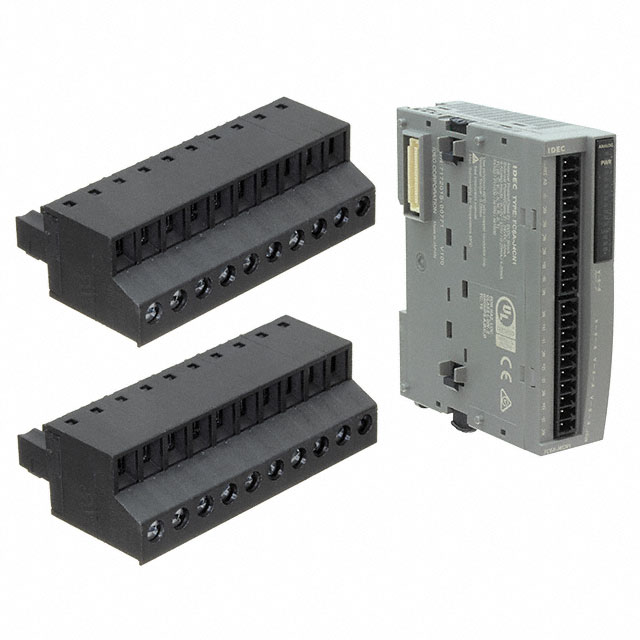

Specification	FC6A-T16P1

Approval Agency	cULus, CE
For Use With/Related Products	FC6A Series
Ingress Protection	IP20
Mounting Type	DIN Rail
Number of Outputs	16
Operating Temperature (Max)	55 °C
Operating Temperature (Min)	-10 °C
Output Type	Solid State
Termination Style	Pluggable Screw Terminal
Type	Output Module
Voltage - Supply	24 VDC

FC6A Series

...

Part	For Use With/Related Products	Type	Mounting Type	Approval Agency	Operating Temperature (Min)	Operating Temperature (Max)	Ingress Protection	Display Type	Voltage - Supply	Memory Size	Features	Communications	Number of Outputs	Output Type	Number of Inputs	Input Types	Expandable	Accessory Type	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Maximum Expandable Modules	Features - Starter Kit	Termination Style	Specifications	Solid State Output Count
IDEC FC6A-HPH1	FC6A Series	Cartridge Base Module	DIN Rail
IDEC FC6A-C40R1DEJ			DIN Rail	CE cULus	-10 °C	55 °C	IP20	No Display	12 VDC	640 KB	Battery Backup (Lithium)	CAN Ethernet USB	16	Relay	24	Digital	Non-Expandable
IDEC FC6A-PMSCK11PN02	Multiple Series																	Module
IDEC FC6A-PMTC10PN02	Multiple Series																	Module
IDEC FC6A-C40R4CEJ			DIN Rail Panel Mount							2 GByte		Ethernet RS-232C RS-485 USB					Expandable		12 VDC	24 VAC
IDEC FC6A-D32P3CEE			DIN Rail					No Display	24 VDC	800 KB	Battery Backup (Lithium)	Ethernet USB	16	Solid State	16	Digital					7 Modules
IDEC KIT-FC6A-C24R-HG3G-V8HP			DIN Rail					TFT - Color LCD	24 VDC								Expandable					Cable Manual Power Supply
IDEC FC6A-R081	FC6A Series	Output Module	DIN Rail	CE cULus	-10 °C	55 °C	IP20		24 VDC				8	Relay									Pluggable Screw Terminal
IDEC FC6A-PTS4	FC6A and FT1A Series																	Option Card Output						Solid State	4
IDEC FC6A-T16P4	FC6A Series	Output Module	Spring Terminal						24 VDC				16	Solid State									Spring Terminal
