CY14B101KA-ZS25XIT

Obsolete

Infineon Technologies

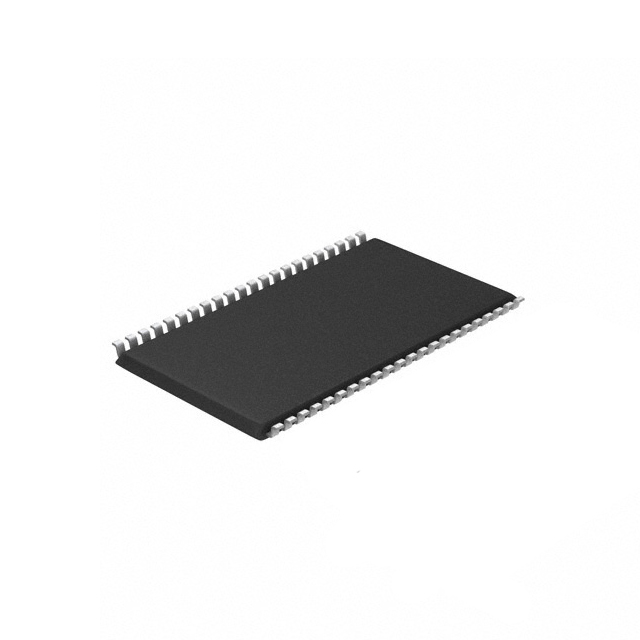

IC NVSRAM 1MBIT PAR 44TSOP II

Deep-Dive with AI

Search across all available documentation for this part.

CY14B101KA-ZS25XIT

Obsolete

Infineon Technologies

IC NVSRAM 1MBIT PAR 44TSOP II

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CY14B101KA-ZS25XIT

Access Time	25 ns
Memory Format	NVSRAM
Memory Interface	Parallel
Memory Organization	128K x 8
Memory Size	1 Mbit
Memory Type	Non-Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	10.16 mm
Package / Case	10.16 mm
Package / Case	44-TSOP
Supplier Device Package	44-TSOP II
Technology	NVSRAM (Non-Volatile SRAM)
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	2.7 V
Write Cycle Time - Word, Page	25 ns

CY14B101 Series

Part	Memory Interface	Memory Format	Supplier Device Package	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Clock Frequency	Memory Size	Memory Type	Memory Organization	Technology	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case [y]	Package / Case [y]	Write Cycle Time - Word, Page [custom]	Write Cycle Time - Word, Page [custom]	Access Time	Package / Case [x]	Write Cycle Time - Word, Page	Package / Case	Package / Case
Infineon Technologies CY14B101Q2-LHXI	SPI	NVSRAM	8-DFN (5x6)	Surface Mount	2.7 V	3.6 V	40 MHz	1 Mbit	Non-Volatile	128K x 8	NVSRAM (Non-Volatile SRAM)	85 °C	-40 °C	8-WDFN Exposed Pad
Infineon Technologies CY14B101KA-SP45XIT	Parallel	NVSRAM	48-SSOP	Surface Mount	2.7 V	3.6 V		1 Mbit	Non-Volatile	128K x 8	NVSRAM (Non-Volatile SRAM)	85 °C	-40 °C	48-BSSOP	0.295 in	7.5 mm	45 ns	45 ns	45 ns
Infineon Technologies CY14B101J2-SXIT	I2C	NVSRAM	8-SOIC	Surface Mount	2.7 V	3.6 V	3.4 MHz	1 Mbit	Non-Volatile	128K x 8	NVSRAM (Non-Volatile SRAM)	85 °C	-40 °C	8-SOIC	3.9 mm					0.154 in
Infineon Technologies CY14B101K-SP45XI	Parallel	NVSRAM	48-SSOP	Surface Mount	2.7 V	3.6 V		1 Mbit	Non-Volatile	128K x 8	NVSRAM (Non-Volatile SRAM)	85 °C	-40 °C	48-BSSOP	0.295 in	7.5 mm	45 ns	45 ns	45 ns
Infineon Technologies CY14B101K-SP45XI	Parallel	NVSRAM	48-SSOP	Surface Mount	2.7 V	3.6 V		1 Mbit	Non-Volatile	128K x 8	NVSRAM (Non-Volatile SRAM)	85 °C	-40 °C	48-BSSOP	0.295 in	7.5 mm	45 ns	45 ns	45 ns
Infineon Technologies CY14B101KA-ZS25XIT	Parallel	NVSRAM	44-TSOP II	Surface Mount	2.7 V	3.6 V		1 Mbit	Non-Volatile	128K x 8	NVSRAM (Non-Volatile SRAM)	85 °C	-40 °C	44-TSOP					25 ns		25 ns	10.16 mm	10.16 mm
Infineon Technologies CY14B101LA-ZS20XIT	Parallel	NVSRAM	44-TSOP II	Surface Mount	2.7 V	3.6 V		1 Mbit	Non-Volatile	128K x 8	NVSRAM (Non-Volatile SRAM)	85 °C	-40 °C	44-TSOP					20 ns		20 ns	10.16 mm	10.16 mm
Infineon Technologies CY14B101LA-SP25XI	Parallel	NVSRAM	48-SSOP	Surface Mount	2.7 V	3.6 V		1 Mbit	Non-Volatile	128K x 8	NVSRAM (Non-Volatile SRAM)	85 °C	-40 °C	48-BSSOP	0.295 in	7.5 mm			25 ns		25 ns
Infineon Technologies CY14B101L-SZ25XC	Parallel	NVSRAM	32-SOIC	Surface Mount	2.7 V	3.6 V		1 Mbit	Non-Volatile	128K x 8	NVSRAM (Non-Volatile SRAM)	70 °C	0 °C	32-SOIC					25 ns		25 ns	0.295 in	7.5 mm
Infineon Technologies CY14B101I-SFXI	I2C	NVSRAM	16-SOIC	Surface Mount	2.7 V	3.6 V	3.4 MHz	1 Mbit	Non-Volatile	128K x 8	NVSRAM (Non-Volatile SRAM)	85 °C	-40 °C	16-SOIC	7.5 mm					0.295 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CY14B101 Series

NVSRAM (Non-Volatile SRAM) Memory IC 1Mbit Parallel 25 ns 44-TSOP II

Documents

Technical documentation and resources

No documents available
