XDMDK100C

Active

SunLED

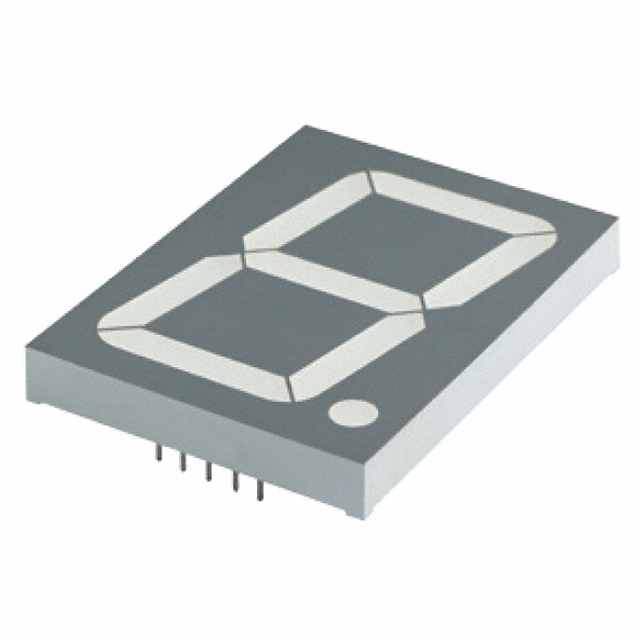

DISPLAY 7SEG 3.98" SGL RED 10DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XDMDK100C

Active

SunLED

DISPLAY 7SEG 3.98" SGL RED 10DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XDMDK100C	XDMDK100 Series

Color	Red	Red
Common Pin	Common Cathode	Common Cathode, Common Anode
Current - Test	10 mA	10 mA
Digit/Alpha Size	101.2 mm	101.2 mm
Digit/Alpha Size	3.98 in	3.98 in
Display Type	7-Segment	7-Segment
Millicandela Rating	74 mcd	74 mcd
Number of Characters [custom]	1	1
Package / Case	107 mm	107 mm
Package / Case	4.21 in	4.21 in
Package / Case	10-DIP	10-DIP
Power Dissipation (Max) [Max]	150 mW	150 mW
Size / Dimension [x]	15 mm	15 mm
Size / Dimension [x]	0.591 in	0.591 in
Size / Dimension [y]	3.543 in	3.543 in
Size / Dimension [y]	90 mm	90 mm
Size / Dimension [z]	122 mm	122 mm
Size / Dimension [z]	4.803 in	4.803 in
Voltage - Forward (Vf) (Typ)	7.4 V	7.4 V
Wavelength - Peak	645 nm	645 nm

XDMDK100 Series

DISPLAY 7SEG 3.98" SGL RED 10DIP

Part	Package / Case	Package / Case	Package / Case	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Common Pin	Color	Number of Characters [custom]	Digit/Alpha Size	Digit/Alpha Size	Millicandela Rating	Current - Test	Power Dissipation (Max) [Max]	Voltage - Forward (Vf) (Typ)	Display Type	Wavelength - Peak
SunLED XDMDK100C	107 mm	4.21 in	10-DIP	15 mm	122 mm	4.803 in	0.591 in	3.543 in	90 mm	Common Cathode	Red	1	101.2 mm	3.98 in	74 mcd	10 mA	150 mW	7.4 V	7-Segment	645 nm
SunLED XDMDK100A	107 mm	4.21 in	10-DIP	15 mm	122 mm	4.803 in	0.591 in	3.543 in	90 mm	Common Anode	Red	1	101.2 mm	3.98 in	74 mcd	10 mA	150 mW	7.4 V	7-Segment	645 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	2004	$ 19.49

Description

General part information

XDMDK100 Series

Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 7.4V 10mA 4.803" H x 3.543" W x 0.591" D (122.00mm x 90.00mm x 15.00mm) 10-DIP (4.210", 107.00mm)
