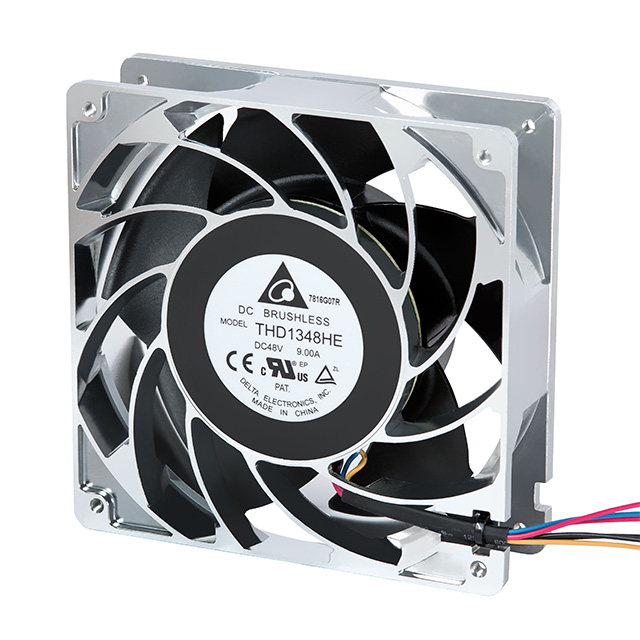

THD1348HE

Active

Delta Electronics

FAN AXIAL 134X38MM 48VDC WIRE

Search across all available documentation for this part.

Active

Delta Electronics

FAN AXIAL 134X38MM 48VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	THD1348HE

Air Flow	13.72 mł/min
Air Flow	490 CFM
Approval Agency	cURus, CE, TUV
Bearing Type	Ball
Current Rating (Amps)	5 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	82 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	240 W
RPM	12500 RPM
Static Pressure	7.1 in H2O
Static Pressure	1768.5 Pa
Termination	4 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	60 V
Voltage Range [Min]	36 VDC
Weight	725.7 g
Weight	1.6 lbs
Width [y]	38 mm

FAN AXIAL 134X38MM 48VDC WIRE

Part	Power (Watts)	Current Rating (Amps)	Voltage Range [Max]	Voltage Range [Min]	Voltage - Rated [custom]	Noise	Bearing Type	Features	Fan Type	Air Flow	Air Flow	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Weight	Weight	Material - Frame	Material - Blade	Termination	Approval Agency	Static Pressure	Static Pressure	Lifetime @ Temp.	Width [y]	RPM
Delta Electronics THD1348HE	240 W	5 A	60 V	36 VDC	48 VDC	82 dB(A)	Ball	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	Tubeaxial	13.72 mł/min	490 CFM	70 °C	70 °C	-10 °C	-10 °C	725.7 g	1.6 lbs	Aluminum	Plastic	4 Wire Leads	CE, cURus, TUV	7.1 in H2O	1768.5 Pa	70000 Hrs	38 mm	12500 RPM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 48VDC Square - 134mm L x 134mm H Ball 490.0 CFM (13.72m³/min) 4 Wire Leads
