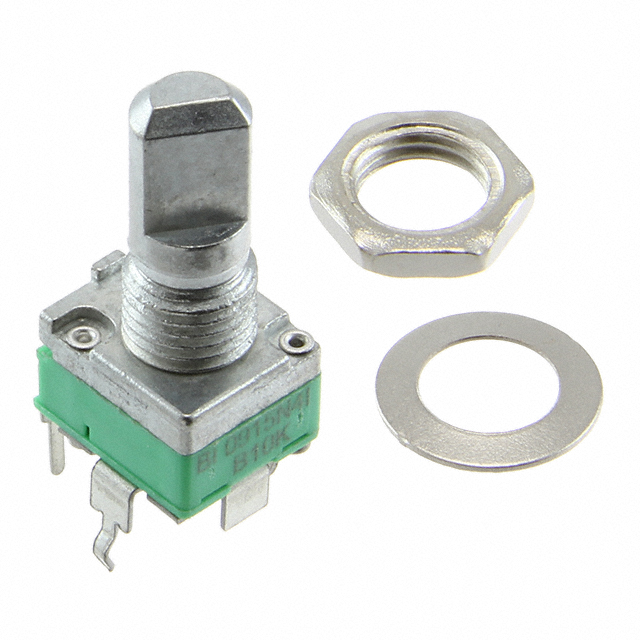

P0915N-FC15BR10K

Active

TT Electronics/BI

POT 10K OHM 1/20W PLASTIC LINEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

P0915N-FC15BR10K

Active

TT Electronics/BI

POT 10K OHM 1/20W PLASTIC LINEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.60
		10	$ 2.29
		25	$ 2.05
		40	$ 1.97
		80	$ 1.89
		230	$ 1.81
		440	$ 1.50
		1960	$ 1.42
		5880	$ 1.18

Description

General part information

P0915N Series

10k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Conductive Plastic 0.05W, 1/20W PC Pins, Board Locks

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	P0915N-FC15BR10K	P0915N Series

Actuator Diameter [diameter]	0.236 in	0.236 in
Actuator Diameter [diameter]	6 mm	6 mm
Actuator Length	15 mm	15 mm
Actuator Length	-	20 mm
Actuator Length [z]	0.591 in	0.591 - 0.787 in
Actuator Type	Flatted	Knurled and Slotted, Slotted, Flatted
Adjustment Type	Top Adjustment	Top Adjustment
Built in Switch	False	False
Bushing Thread	0.75	0.75
Bushing Thread	M7	M7
Number of Gangs	1	1
Number of Turns	1	1
Power (Watts)	0.05 W	0.025 - 0.05 W
Power (Watts)	50 mW	50 mW
Power (Watts)	-	0.025 W
Resistance (Ohms)	10k	10k, 2k
Resistance (Ohms)	-	5 - 500 kOhms
Resistive Material	Conductive Plastic	Conductive Plastic
Rotation	300 ░	300 ░
Size - Body [x]	0.447 in	0.447 in
Size - Body [x]	11.35 mm	11.35 mm
Size - Body [y]	0.374 in	0.374 in
Size - Body [y]	9.5 mm	9.5 mm
Taper	Linear	Logarithmic, Linear
Termination Style	Board Locks, PC Pins	Board Locks, PC Pins
Tolerance	20 %	20 %

P0915N Series

POT 500K OHM 1/40W PLASTIC LOG

Part	Tolerance	Bushing Thread	Bushing Thread	Power (Watts)	Power (Watts)	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Adjustment Type	Number of Turns	Termination Style	Rotation	Number of Gangs	Resistance (Ohms)	Size - Body [y]	Size - Body [x]	Size - Body [y]	Size - Body [x]	Actuator Type	Taper	Resistive Material	Actuator Length [z]	Actuator Length	Power (Watts)	Actuator Length [z]	Resistance (Ohms)
TT Electronics/BI P0915N-QC15AR500K	20 %	0.75	M7	0.025 W	0.025 W	0.236 in	6 mm	Top Adjustment	1	Board Locks, PC Pins	300 ░	1	500 kOhms	0.374 in	0.447 in	9.5 mm	11.35 mm	Knurled and Slotted	Logarithmic	Conductive Plastic	0.591 in	15 mm
TT Electronics/BI P0915N-QC20BR50K	20 %	0.75	M7	0.05 W		0.236 in	6 mm	Top Adjustment	1	Board Locks, PC Pins	300 ░	1	50 kOhms	0.374 in	0.447 in	9.5 mm	11.35 mm	Knurled and Slotted	Linear	Conductive Plastic	0.787 in		50 mW	20 mm
TT Electronics/BI P0915N-EC15BR100K	20 %	0.75	M7	0.05 W		0.236 in	6 mm	Top Adjustment	1	Board Locks, PC Pins	300 ░	1	100 kOhms	0.374 in	0.447 in	9.5 mm	11.35 mm	Slotted	Linear	Conductive Plastic	0.591 in	15 mm	50 mW
TT Electronics/BI P0915N-QC15BR50K	20 %	0.75	M7	0.05 W		0.236 in	6 mm	Top Adjustment	1	Board Locks, PC Pins	300 ░	1	50 kOhms	0.374 in	0.447 in	9.5 mm	11.35 mm	Knurled and Slotted	Linear	Conductive Plastic	0.591 in	15 mm	50 mW
TT Electronics/BI P0915N-FC15BR10K	20 %	0.75	M7	0.05 W		0.236 in	6 mm	Top Adjustment	1	Board Locks, PC Pins	300 ░	1		0.374 in	0.447 in	9.5 mm	11.35 mm	Flatted	Linear	Conductive Plastic	0.591 in	15 mm	50 mW		10k
TT Electronics/BI P0915N-QC15BR5K	20 %	0.75	M7	0.05 W		0.236 in	6 mm	Top Adjustment	1	Board Locks, PC Pins	300 ░	1	5 kOhms	0.374 in	0.447 in	9.5 mm	11.35 mm	Knurled and Slotted	Linear	Conductive Plastic	0.591 in	15 mm	50 mW
TT Electronics/BI P0915N-QC20BR5K	20 %	0.75	M7	0.05 W		0.236 in	6 mm	Top Adjustment	1	Board Locks, PC Pins	300 ░	1	5 kOhms	0.374 in	0.447 in	9.5 mm	11.35 mm	Knurled and Slotted	Linear	Conductive Plastic	0.787 in		50 mW	20 mm
TT Electronics/BI P0915N-FC15AR50K	20 %	0.75	M7	0.025 W	0.025 W	0.236 in	6 mm	Top Adjustment	1	Board Locks, PC Pins	300 ░	1	50 kOhms	0.374 in	0.447 in	9.5 mm	11.35 mm	Flatted	Logarithmic	Conductive Plastic	0.591 in	15 mm
TT Electronics/BI P0915N-EC15BR10K	20 %	0.75	M7	0.05 W		0.236 in	6 mm	Top Adjustment	1	Board Locks, PC Pins	300 ░	1		0.374 in	0.447 in	9.5 mm	11.35 mm	Slotted	Linear	Conductive Plastic	0.591 in	15 mm	50 mW		10k
TT Electronics/BI P0915N-EC15BR2K	20 %	0.75	M7	0.05 W		0.236 in	6 mm	Top Adjustment	1	Board Locks, PC Pins	300 ░	1		0.374 in	0.447 in	9.5 mm	11.35 mm	Slotted	Linear	Conductive Plastic	0.591 in	15 mm	50 mW		2k
