DC2990A

Active

Analog Devices

DEMO BRD, SYNC STEP-DOWN SILENT SWITCHER ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DC2990A

Active

Analog Devices

DEMO BRD, SYNC STEP-DOWN SILENT SWITCHER ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DC2990A

Board Type	Fully Populated
Current - Output	3 A
Frequency - Switching	2 MHz
Main Purpose	DC/DC, Step Down
Outputs and Type	Non-Isolated
Outputs and Type	1
Regulator Topology	Buck
Supplied Contents	Board(s)
Utilized IC / Part	LTC3307A
Voltage - Input [Max]	5.5 V
Voltage - Input [Min]	2.25 V
Voltage - Output	1.2 V

LTC3307A Series

5V, 3A Synchronous Step-Down Silent Switcher in 2mm × 2mm LQFN and 1.6mm x 1.6mm WLCSP

Part	Frequency - Switching	Voltage - Output (Max) [Max]	Output Type	Function	Output Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Voltage - Output (Min/Fixed) [Min]	Supplier Device Package	Package / Case	Mounting Type	Topology	Current - Output	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Frequency - Switching [Min]	Frequency - Switching [Max]	Grade	Qualification	Board Type	Main Purpose	Regulator Topology	Voltage - Output	Voltage - Input [Min]	Voltage - Input [Max]	Supplied Contents	Outputs and Type	Outputs and Type	Utilized IC / Part
Analog Devices LTC3307BMPV#TRMPBF	6 MHz	5.5 V	Adjustable	Step-Down	Positive	-55 °C	150 °C	2	0.5 V	12-LQFN (2x2)	12-VFQFN Exposed Pad	Surface Mount	Buck	2 A	2.25 V	5.5 V
Analog Devices LTC3307AACBZ-R7		5.5 V	Adjustable	Step-Down	Positive	-40 °C	125 ¯C	1	0.5 V	16-WLCSP (1.64x1.64)	16-UFBGA WLCSP	Surface Mount	Buck	3 A	2.25 V	5.5 V	1 MHz	3 MHz	Automotive	AEC-Q100
Analog Devices LTC3307BIV#TRMPBF	6 MHz	5.5 V	Adjustable	Step-Down	Positive	-55 °C	150 °C	2	0.5 V	12-LQFN (2x2)	12-VFQFN Exposed Pad	Surface Mount	Buck	2 A	2.25 V	5.5 V
Analog Devices LTC3307AMPV#TRMPBF	2 MHz	5.5 V	Adjustable	Step-Down	Positive	-55 °C	150 °C	1	0.5 V	12-LQFN (2x2)	12-VFQFN Exposed Pad	Surface Mount	Buck	3 A	2.25 V	5.5 V
Analog Devices LTC3307BMPV#TRPBF	6 MHz	5.5 V	Adjustable	Step-Down	Positive	-55 °C	150 °C	2	0.5 V	12-LQFN (2x2)	12-VFQFN Exposed Pad	Surface Mount	Buck	2 A	2.25 V	5.5 V
Analog Devices LTC3307AEV#TRMPBF	2 MHz	5.5 V	Adjustable	Step-Down	Positive	-40 °C	125 ¯C	1	0.5 V	12-LQFN (2x2)	12-VFQFN Exposed Pad	Surface Mount	Buck	3 A	2.25 V	5.5 V
Analog Devices LTC3307BIV#TRPBF										12-LQFN (2x2)	12-VFQFN Exposed Pad	Surface Mount
Analog Devices LTC3307AIV#TRMPBF	2 MHz	5.5 V	Adjustable	Step-Down	Positive	-40 °C	125 ¯C	1	0.5 V	12-LQFN (2x2)	12-VFQFN Exposed Pad	Surface Mount	Buck	3 A	2.25 V	5.5 V
Analog Devices LTC3307AMPV#TRPBF	2 MHz	5.5 V	Adjustable	Step-Down	Positive	-55 °C	150 °C	1	0.5 V	12-LQFN (2x2)	12-VFQFN Exposed Pad	Surface Mount	Buck	3 A	2.25 V	5.5 V

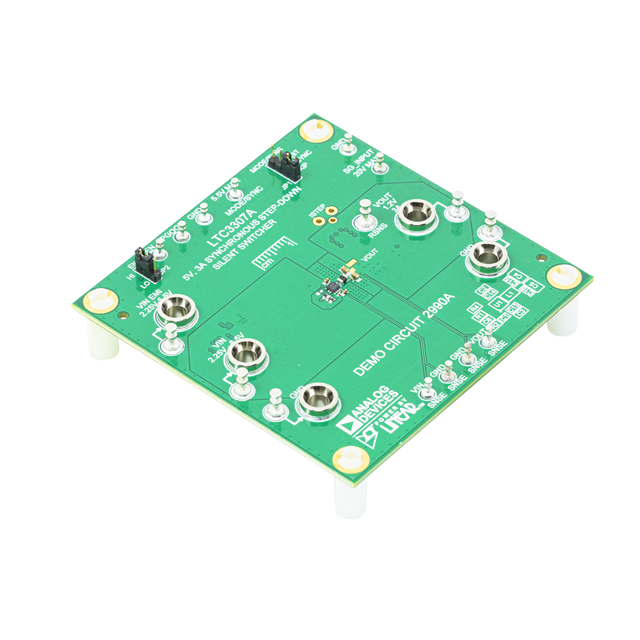

Analog Devices DC2990A	2 MHz													3 A							Fully Populated	DC/DC Step Down	Buck	1.2 V	2.25 V	5.5 V	Board(s)	Non-Isolated	1	LTC3307A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 94.68
Newark	Each	1	$ 97.93

Description

General part information

LTC3307A Series

The LTC®3307A is a very small, high efficiency, low noise, monolithic synchronous 3A step-down DC/DC converter operating from a 2.25V to 5.5V input supply. Using constant frequency, peak current mode control at switching frequencies 1MHz to 3MHz and minimum on-time as low as 22ns, this regulator achieves fast transient response with small external components. Silent Switcher architecture minimizes EMI emissions.The LTC3307A operates in forced continuous or pulse skip mode for low noise, or low-ripple Burst Mode operation for high efficiency at light loads, ideal for battery-powered systems. The IC regulates output voltages as low as 500mV. Other features include output overvoltage protection, short-circuit protection, thermal shutdown, clock synchronization, and up to 100% duty cycle operation for low dropout. The device is available in a low profile 12-lead 2mm × 2mm × 0.74mm LQFN package with exposed pad for low thermal resistance, and a 16-pin 1.64mm × 1.64mm × 0.5mm WLCSP package.The LTC3307A operates in forced continuous or pulse skipping mode for low noise, or low-ripple Burst Mode operation for high efficiency at light loads, ideal for battery-powered systems. The IC regulates output voltages as low as 500mV. Other features include output overvoltage protection, short-circuit protection, thermal shut down, clock synchronization, and up to 100% duty cycle operation for low dropout. The device is available in a low profile 12-lead 2mm × 2mm × 0.74mm LQFN package with exposed pad for low thermal resistance, and a 16-pin 1.64mm × 1.64mm × 0.5mm WLCSP package.For applications that require a faster power-on and transient response, the LTC3307A-1 has reduced power-on time, soft-start time, and higher bandwidth.ApplicationsOptical Networking, Servers, TelecomAutomotive, Industrial, CommunicationsDistributed DC Power Systems (POL)FPGA, ASIC, µP Core SuppliesBattery Operated Systems
