EAC409060

Active

Switchcraft Inc.

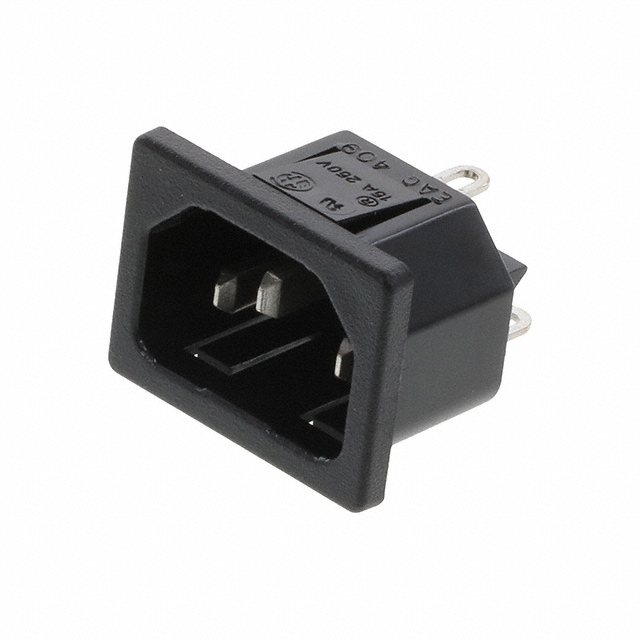

PWR ENT RCPT IEC320-C14 PNL SLDR

Search across all available documentation for this part.

Active

Switchcraft Inc.

PWR ENT RCPT IEC320-C14 PNL SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	EAC409060

Accomodates a Fuse	False
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	10 A
Filter Type	Unfiltered - Commercial
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	27.41 mm
Panel Cutout Dimensions [y]	19.79 mm
Panel Thickness [Max]	1.78 mm
Panel Thickness [Max]	0.07 in
Panel Thickness [Min]	1.52 mm
Panel Thickness [Min]	0.06 in
Termination	Solder Eyelet
Voltage Rating - Appliance Inlet	250 VAC

PWR ENT RCPT IEC320-C14 PNL SLDR

Part	Mounting Type	Accomodates a Fuse	Connector Style	Current Rating - Appliance Inlet	Filter Type	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Connector Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Termination	Voltage Rating - Appliance Inlet
Switchcraft Inc. EAC409060	Panel Mount, Snap-In		IEC 320-C14	10 A	Unfiltered - Commercial	1.78 mm	1.52 mm	0.07 in	0.06 in	Male Blades, Receptacle	19.79 mm	27.41 mm	Solder Eyelet	250 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Snap-In
