Description
General part information
RB65P06C20B

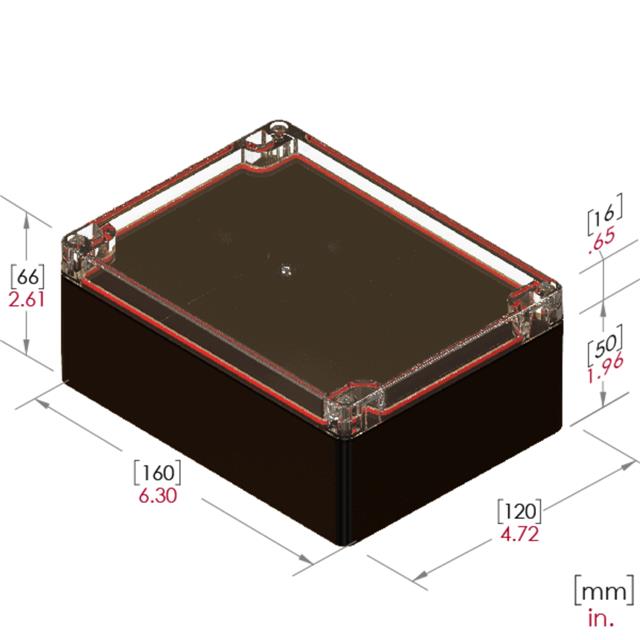

Box Plastic, Polycarbonate Black, Clear Cover/Door Cover Included 6.300" L x 4.720" W (160.02mm x 119.89mm) X 2.610" (66.29mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | RB65P06C20B |
|---|---|
| Area (L x W) | 18.9 in² |
| Color | Black, Clear Cover/Door |
| Container Type | Box |
| Design | Cover Included |
| Height | 2.61 in |
| Material | Polycarbonate (PC), Plastic, Polycarbonate |
| Material Flammability Rating | UL94 V-0 |
| Ratings | NEMA 4, IP67 |
| Size / Dimension Length | 6.3 in |
| Size / Dimension Width | 4.72 in |
| Thickness | 0.13 in |
