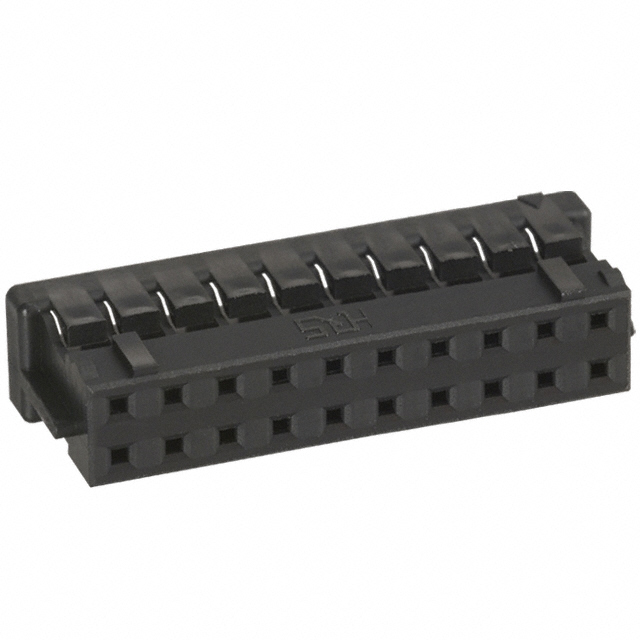

Specification	DF11-20DS-2C(20)

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	20
Number of Rows	2
Pitch	0.079 in
Row Spacing	0.079 in

DF11 Series

...

Part	Operating Temperature (Max)	Operating Temperature (Min)	Voltage Rating	Fastening Type	Number of Positions	Number of Positions Loaded	Mounting Type	Row Spacing - Mating	Number of Rows	Insulation Color	Pitch - Mating	Connector Type	Termination	Contact Finish Thickness - Mating	Contact Type	Mated Stacking Height Options	Material Flammability Rating	Style	Contact Finish - Mating	Features	Current Rating	Contact Finish - Post	Insulation Height	Applications	Insulation Material	Contact Finish Thickness - Post	Contact Material	Contact Shape	Shrouding
Hirose Electric Co Ltd DF11Z-4DS-2V(20)	85 °C	-30 °C	250 V	Friction Lock	4	All	Surface Mount	0.079 in	2	Beige	0.079 in	Receptacle	Solder	39.4 µin	Female Socket	7.55mm 8.2mm	UL94 V-0	Board Board or Cable	Tin	Board Guide Solder Retention	2 A	Tin	0.234 in	General Purpose	Nylon Polyamide (PA)	78.7 µin	Phosphor Bronze	Square
Hirose Electric Co Ltd DF11Z-24DS-2V(22)	85 °C	-30 °C	250 V	Friction Lock	24 pos	All	Surface Mount	0.079 in	2	Beige	0.079 in	Receptacle	Solder	8 µin	Female Socket	7.55mm 8.2mm	UL94 V-0	Board Board or Cable	Gold	Board Guide Solder Retention	2 A	Tin	0.234 in	General Purpose	Nylon Polyamide (PA)	78.7 µin	Phosphor Bronze	Square
Hirose Electric Co Ltd DF11Z-30DS-2V(50)	85 °C	-30 °C	250 V	Friction Lock	30	All	Surface Mount	0.079 in	2	Beige	0.079 in	Receptacle	Solder	8 µin	Female Socket	7.55mm 8.2mm	UL94 V-0	Board Board or Cable	Gold	Board Guide Solder Retention	2 A	Tin	0.234 in	General Purpose	Nylon Polyamide (PA)	78.7 µin	Phosphor Bronze	Square
Hirose Electric Co Ltd DF11Z-28DS-2V(50)	85 °C	-30 °C	250 V	Friction Lock	28	All	Surface Mount	0.079 in	2	Beige	0.079 in	Receptacle	Solder	8 µin	Female Socket	7.55mm 8.2mm	UL94 V-0	Board Board or Cable	Gold	Board Guide Solder Retention	2 A	Tin	0.234 in	General Purpose	Nylon Polyamide (PA)	78.7 µin	Phosphor Bronze	Square
Hirose Electric Co Ltd DF11Z-10DP-2V(27)	85 °C	-30 °C	250 V	Detent Lock	10	All	Surface Mount	0.079 in	2	Beige	0.079 in	Header	Solder	39.4 µin	Male Pin	8.2mm 8.45mm 9.55mm	UL94 V-0	Board Board or Cable	Tin	Board Guide Pick and Place Solder Retention	2 A	Tin	0.283 in		Nylon Polyamide (PA)		Brass	Circular Square	Shrouded - 4 Wall
Hirose Electric Co Ltd DF11Z-26DP-2V(27)	85 °C	-30 °C	250 V	Detent Lock	26	All	Surface Mount	0.079 in	2	Beige	0.079 in	Header	Solder	39.4 µin	Male Pin	8.2mm 8.45mm 9.55mm	UL94 V-0	Board Board or Cable	Tin	Board Guide Pick and Place Solder Retention	2 A	Tin	0.283 in		Nylon Polyamide (PA)		Brass	Circular Square	Shrouded - 4 Wall
Hirose Electric Co Ltd DF11Z-24DS-2V(21)
Hirose Electric Co Ltd DF11Z-18DP-2V(21)												Receptacle			Female Socket
Hirose Electric Co Ltd DF11Z-26DS-2V(20)	85 °C	-30 °C	250 V	Friction Lock	26	All	Surface Mount	0.079 in	2	Beige	0.079 in	Receptacle	Solder	39.4 µin	Female Socket	7.55mm 8.2mm	UL94 V-0	Board Board or Cable	Tin	Board Guide Solder Retention	2 A	Tin	0.234 in	General Purpose	Nylon Polyamide (PA)	78.7 µin	Phosphor Bronze	Square
Hirose Electric Co Ltd DF11Z-8DS-2V(52)	85 °C	-30 °C	250 V	Friction Lock	8	All	Surface Mount	0.079 in	2	Beige	0.079 in	Receptacle	Solder	8 µin	Female Socket	7.55mm 8.2mm	UL94 V-0	Board Board or Cable	Gold	Board Guide Solder Retention	2 A	Tin	0.234 in	General Purpose	Nylon Polyamide (PA)	78.7 µin	Phosphor Bronze	Square
