DR1012-2.5

Active

Birk Manufacturing

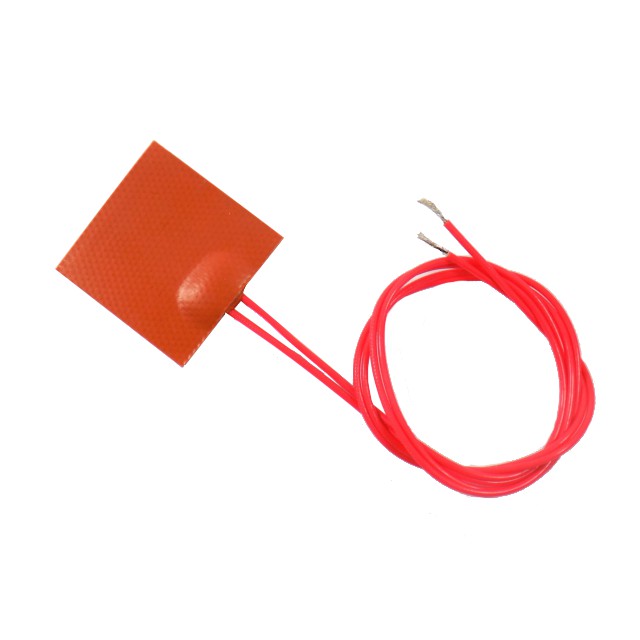

FLEX HEATER SIL RUBBER 18" WIRE

Search across all available documentation for this part.

Active

Birk Manufacturing

FLEX HEATER SIL RUBBER 18" WIRE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DR1012-2.5	DR1012 Series

Attachment Method	Pressure Sensitive Adhesive (PSA)	Pressure Sensitive Adhesive (PSA)
Color	Red	Red
Length	50.8 mm	50.8 mm
Length	2 in	2 in
Length - Lead Wire [x]	18 in	18 in
Length - Lead Wire [x]	457.2 mm	457.2 mm
Material	Silicone Rubber	Silicone Rubber
Shape	Rectangular	Rectangular
Temperature Rating	302 °F	302 °F
Temperature Rating	150 °C	150 °C
Termination	Wire Leads	Wire Leads
Type	Flexible Heater, Foil	Flexible Heater, Foil
Width	25.4 mm	25.4 mm
Width [x]	1 in	1 in
Wire Gauge	30 AWG	30 AWG

FLEX HEATER SIL RUBBER 18" WIRE

Part	Shape	Length	Length	Color	Termination	Type	Material	Length - Lead Wire [x]	Length - Lead Wire [x]	Temperature Rating	Temperature Rating	Attachment Method	Width	Width [x]	Wire Gauge
Birk Manufacturing DR1012-2.5	Rectangular	50.8 mm	2 in	Red	Wire Leads	Flexible Heater, Foil	Silicone Rubber	18 in	457.2 mm	302 °F	150 °C	Pressure Sensitive Adhesive (PSA)	25.4 mm	1 in	30 AWG
Birk Manufacturing DR1012-5	Rectangular	50.8 mm	2 in	Red	Wire Leads	Flexible Heater, Foil	Silicone Rubber	18 in	457.2 mm	302 °F	150 °C	Pressure Sensitive Adhesive (PSA)	25.4 mm	1 in	30 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

FLEX HEATER SIL RUBBER 18" WIRE
