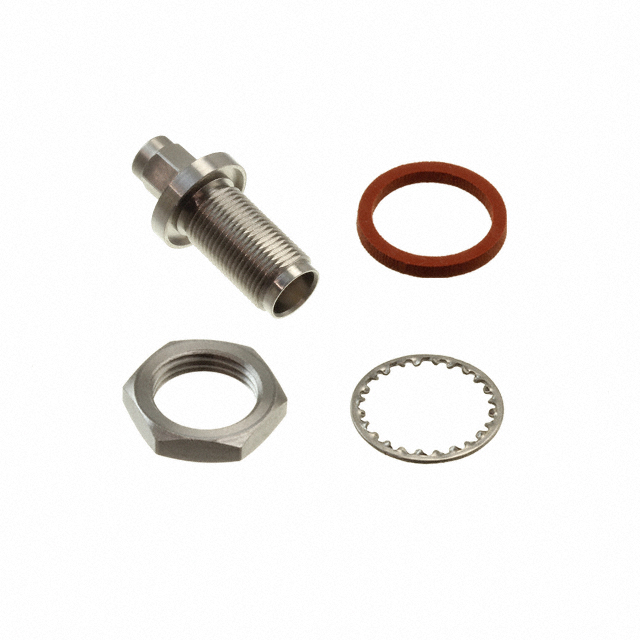

ADT-2815-TF-SMM-02

Active

Cinch Connectivity Solutions Midwest Microwave

CONN ADAPT TNC JACK TO SMA PLUG

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Midwest Microwave

CONN ADAPT TNC JACK TO SMA PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	ADT-2815-TF-SMM-02

Adapter Series	SMA to TNC
Adapter Type	Plug to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	TNC Jack, Female Socket
Convert To (Adapter End)	SMA Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mounting Feature	Bulkhead
Style	Straight

CONN ADAPT TNC JACK TO SMA PLUG

Part	Convert From (Adapter End)	Adapter Series	Center Contact Material	Convert To (Adapter End)	Conversion Type	Adapter Type	Style	Body Material	Mounting Feature	Frequency - Max [Max]	Center Contact Plating	Impedance	Includes	Dielectric Material
Cinch Connectivity Solutions Midwest Microwave ADT-2815-TF-SMM-02	TNC Jack, Female Socket	SMA to TNC	Beryllium Copper	Male Pin, SMA Plug	Between Series	Plug to Jack	Straight	Stainless Steel	Bulkhead	18 GHz	Gold	50 Ohms	1 Connector, 1 Lockwasher, 1 Nut	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector TNC Jack, Female Socket To SMA Plug, Male Pin 50 Ohms
