1-796644-0

Active

TE Connectivity AMP Connectors

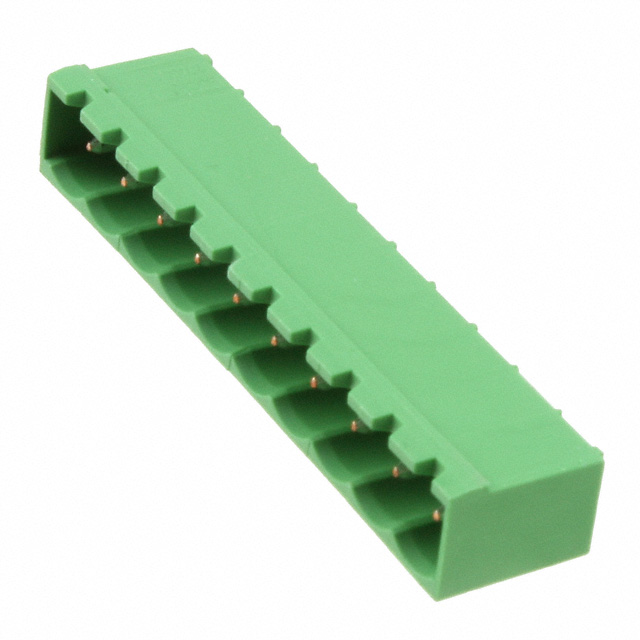

TERM BLOCK HDR 10POS 90DEG 5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1-796644-0

Active

TE Connectivity AMP Connectors

TERM BLOCK HDR 10POS 90DEG 5MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.44
		10	$ 2.17
		25	$ 2.16
		50	$ 2.14
		100	$ 1.95

Description

General part information

796644 Series

10 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) 90°, Right Angle Through Hole

Documents

Technical documentation and resources

Datasheet

Specification	1-796644-0	796644 Series

Color	Green	Green
Contact Material	Copper Alloy	Copper Alloy
Contact Mating Finish	Tin	Tin
Contact Tail Length	3.5 mm	3.5 mm
Contact Tail Length	0.138 in	0.138 in
Header Orientation	90°, Right Angle	90°, Right Angle
Insulation Height	8.36 mm	8.36 mm
Insulation Height	0.329 in	0.329 in
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Number of Positions	10	2 - 24
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	5 mm	5 mm
Pitch [x]	0.197 in	0.197 in
Positions Per Level	10	2 - 23
Termination Style	Solder	Solder
Type	Header, Male Pins, Shrouded (4 Side)	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V	300 V

Part

Contact Mating Finish

Contact Tail Length

Contact Material

Mounting Type

Positions Per Level

Material Flammability Rating

Voltage - UL

Insulation Height

Pitch [x]

Number of Levels

Color

Type

Number of Positions

Header Orientation

Termination Style

Operating Temperature [Min]

Operating Temperature [Max]

TE Connectivity AMP Connectors

3-796644-7

Tin

3.5 mm

0.138 in

Copper Alloy

Through Hole

UL94 V-0

300 V

8.36 mm

0.329 in

5 mm

0.197 in

Green

Header, Male Pins, Shrouded (4 Side)

90°, Right Angle

Solder

-40 °C

110 °C

TE Connectivity AMP Connectors

1-796644-8

Tin

3.5 mm

0.138 in

Copper Alloy

Through Hole

UL94 V-0

300 V

8.36 mm

0.329 in

5 mm

0.197 in

Green

Header, Male Pins, Shrouded (4 Side)

90°, Right Angle

Solder

-40 °C

110 °C

TE Connectivity AMP Connectors

796644-5

Tin

3.5 mm

0.138 in

Copper Alloy

Through Hole

UL94 V-0

300 V

8.36 mm

0.329 in

5 mm

0.197 in

Green

Header, Male Pins, Shrouded (4 Side)

90°, Right Angle

Solder

-40 °C

110 °C

TE Connectivity AMP Connectors

796644-9

Tin

3.5 mm

0.138 in

Copper Alloy

Through Hole

UL94 V-0

300 V

8.36 mm

0.329 in

5 mm

0.197 in

Green

Header, Male Pins, Shrouded (4 Side)

90°, Right Angle

Solder

-40 °C

110 °C

TE Connectivity AMP Connectors

2-796644-1

Tin

3.5 mm

0.138 in

Copper Alloy

Through Hole

UL94 V-0

300 V

8.36 mm

0.329 in

5 mm

0.197 in

Green

Header, Male Pins, Shrouded (4 Side)

90°, Right Angle

Solder

-40 °C

110 °C

TE Connectivity AMP Connectors

796644-4

Tin

3.5 mm

0.138 in

Copper Alloy

Through Hole

UL94 V-0

300 V

8.36 mm

0.329 in

5 mm

0.197 in

Green

Header, Male Pins, Shrouded (4 Side)

90°, Right Angle

Solder

-40 °C

110 °C

TE Connectivity AMP Connectors

2-796644-4

Tin

3.5 mm

0.138 in

Copper Alloy

Through Hole

UL94 V-0

300 V

8.36 mm

0.329 in

5 mm

0.197 in

Green

Header, Male Pins, Shrouded (4 Side)

90°, Right Angle

Solder

-40 °C

110 °C

TE Connectivity AMP Connectors

1-796644-1

Tin

3.5 mm

0.138 in

Copper Alloy

Through Hole

UL94 V-0

300 V

8.36 mm

0.329 in

5 mm

0.197 in

Green

Header, Male Pins, Shrouded (4 Side)

90°, Right Angle

Solder

-40 °C

110 °C

TE Connectivity AMP Connectors

1-796644-4

Tin

3.5 mm

0.138 in

Copper Alloy

Through Hole

UL94 V-0

300 V

8.36 mm

0.329 in

5 mm

0.197 in

Green

Header, Male Pins, Shrouded (4 Side)

90°, Right Angle

Solder

-40 °C

110 °C

TE Connectivity AMP Connectors

1-796644-3

Tin

3.5 mm

0.138 in

Copper Alloy

Through Hole

UL94 V-0

300 V

8.36 mm

0.329 in

5 mm

0.197 in

Green

Header, Male Pins, Shrouded (4 Side)

90°, Right Angle

Solder

-40 °C

110 °C

Part	Contact Mating Finish	Contact Tail Length	Contact Tail Length	Contact Material	Mounting Type	Positions Per Level	Material Flammability Rating	Voltage - UL	Insulation Height	Insulation Height	Pitch [x]	Pitch [x]	Number of Levels	Color	Type	Number of Positions	Header Orientation	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]
TE Connectivity AMP Connectors 3-796644-7	Tin	3.5 mm	0.138 in	Copper Alloy	Through Hole	7	UL94 V-0	300 V	8.36 mm	0.329 in	5 mm	0.197 in	1	Green	Header, Male Pins, Shrouded (4 Side)	7	90°, Right Angle	Solder	-40 °C	110 °C
TE Connectivity AMP Connectors 1-796644-8	Tin	3.5 mm	0.138 in	Copper Alloy	Through Hole	18	UL94 V-0	300 V	8.36 mm	0.329 in	5 mm	0.197 in	1	Green	Header, Male Pins, Shrouded (4 Side)	18	90°, Right Angle	Solder	-40 °C	110 °C
TE Connectivity AMP Connectors 796644-5	Tin	3.5 mm	0.138 in	Copper Alloy	Through Hole	5	UL94 V-0	300 V	8.36 mm	0.329 in	5 mm	0.197 in	1	Green	Header, Male Pins, Shrouded (4 Side)		90°, Right Angle	Solder	-40 °C	110 °C
TE Connectivity AMP Connectors 796644-9	Tin	3.5 mm	0.138 in	Copper Alloy	Through Hole	9	UL94 V-0	300 V	8.36 mm	0.329 in	5 mm	0.197 in	1	Green	Header, Male Pins, Shrouded (4 Side)	9	90°, Right Angle	Solder	-40 °C	110 °C
TE Connectivity AMP Connectors 2-796644-1	Tin	3.5 mm	0.138 in	Copper Alloy	Through Hole	21	UL94 V-0	300 V	8.36 mm	0.329 in	5 mm	0.197 in	1	Green	Header, Male Pins, Shrouded (4 Side)	21	90°, Right Angle	Solder	-40 °C	110 °C
TE Connectivity AMP Connectors 796644-4	Tin	3.5 mm	0.138 in	Copper Alloy	Through Hole	4	UL94 V-0	300 V	8.36 mm	0.329 in	5 mm	0.197 in	1	Green	Header, Male Pins, Shrouded (4 Side)	4	90°, Right Angle	Solder	-40 °C	110 °C
TE Connectivity AMP Connectors 2-796644-4	Tin	3.5 mm	0.138 in	Copper Alloy	Through Hole		UL94 V-0	300 V	8.36 mm	0.329 in	5 mm	0.197 in	1	Green	Header, Male Pins, Shrouded (4 Side)	24	90°, Right Angle	Solder	-40 °C	110 °C
TE Connectivity AMP Connectors 1-796644-1	Tin	3.5 mm	0.138 in	Copper Alloy	Through Hole	11	UL94 V-0	300 V	8.36 mm	0.329 in	5 mm	0.197 in	1	Green	Header, Male Pins, Shrouded (4 Side)	11	90°, Right Angle	Solder	-40 °C	110 °C
TE Connectivity AMP Connectors 1-796644-4	Tin	3.5 mm	0.138 in	Copper Alloy	Through Hole	14	UL94 V-0	300 V	8.36 mm	0.329 in	5 mm	0.197 in	1	Green	Header, Male Pins, Shrouded (4 Side)	14	90°, Right Angle	Solder	-40 °C	110 °C
TE Connectivity AMP Connectors 1-796644-3	Tin	3.5 mm	0.138 in	Copper Alloy	Through Hole	13	UL94 V-0	300 V	8.36 mm	0.329 in	5 mm	0.197 in	1	Green	Header, Male Pins, Shrouded (4 Side)	13	90°, Right Angle	Solder	-40 °C	110 °C
