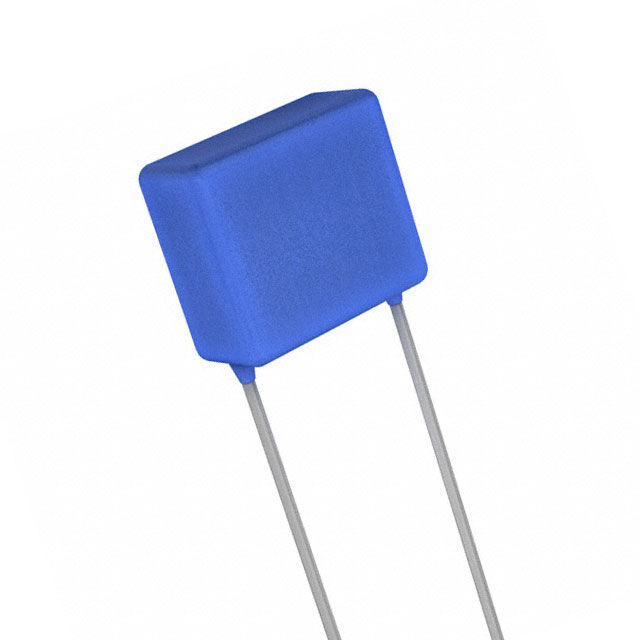

10HV16N103KN

Active

KEMET

CAP CER 10000PF 1KV NP0 RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP CER 10000PF 1KV NP0 RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	10HV16N103KN

Applications	Downhole
Capacitance	10000 pF
Features	High Voltage, High Temperature
Height - Seated (Max) [Max] [z]	17.78 mm
Height - Seated (Max) [Max] [z]	0.7 "
Lead Spacing	0.7 in
Lead Spacing	17.78 mm
Lead Style	Straight
Mounting Type	Through Hole
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	0.82 "
Size / Dimension [x]	20.83 mm
Size / Dimension [y]	8.89 mm
Size / Dimension [y]	0.35 "
Temperature Coefficient	NP0, C0G
Tolerance	10 %
Voltage - Rated	1 kV
Voltage - Rated	1000 V

CAP CER 10000PF 1KV NP0 RADIAL

Part	Lead Spacing	Lead Spacing	Applications	Voltage - Rated	Voltage - Rated	Features	Package / Case	Capacitance	Lead Style	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Temperature Coefficient	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET 10HV16N103KN	0.7 in	17.78 mm	Downhole	1 kV	1000 V	High Temperature, High Voltage	Radial	10000 pF	Straight	10 %	-55 °C	200 °C	Through Hole	8.89 mm	0.82 "	0.35 "	20.83 mm	C0G, NP0	17.78 mm	0.7 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

10000 pF ±10% 1000V (1kV) Ceramic Capacitor C0G, NP0 Radial
