WM5102ECS/R
ObsoleteCirrus Logic Inc.
IC CODEC AUDIO HUB W/DSP 137WCSP
WM5102ECS/R
ObsoleteCirrus Logic Inc.
IC CODEC AUDIO HUB W/DSP 137WCSP
Description
General part information
WM5102ECS/R

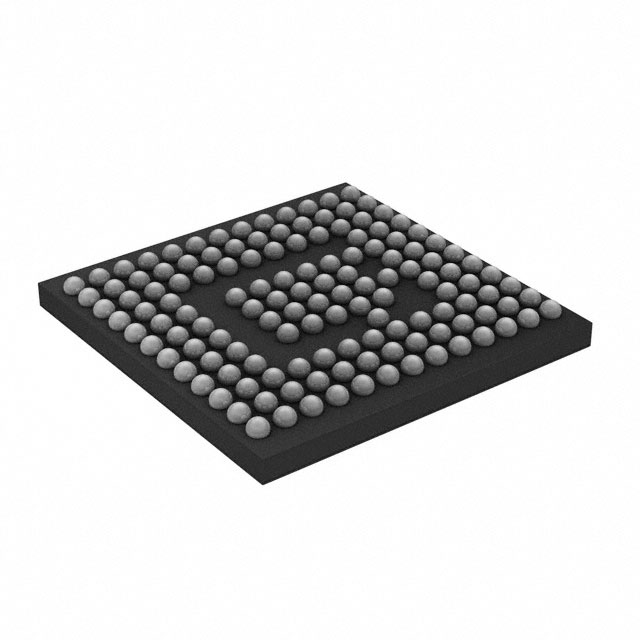

Audio Interface 24 b SLIMbus 137-WCSP (5.4x5.43)
Technical Specifications
Parameters and characteristics for this part
| Specification | WM5102ECS/R |
|---|---|
| Data Interface | SLIMbus |
| Mounting Type | Surface Mount |
| Number of ADCs | 6 |
| Number of DACs | 7 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 137-UFBGA, WLCSP |
| Package Length | 5.4 mm |
| Package Name | 137-WCSP |
| Package Width | 5.43 mm |
| Resolution (Bits) | 24 b |
| S/N Ratio (ADCs) (Typical) | 96 dB |
| S/N Ratio (DACs) (Typical) | 113 dB |
| Sigma Delta | Yes |
| Type | Audio |
| Voltage - Supply, Analog (Max) | 1.9 V |
| Voltage - Supply, Analog (Min) | 1.7 V |
| Voltage - Supply, Digital (Max) | 3.47 V |
| Voltage - Supply, Digital (Min) | 1.7 V |
