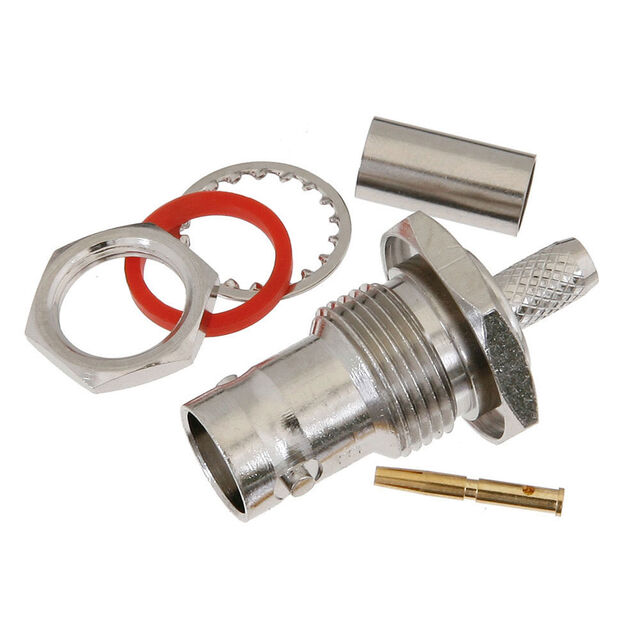

FMCN1570
ObsoleteFairview Microwave
CONN JACK CRIMP/SOLDER BNC
FMCN1570
ObsoleteFairview Microwave
CONN JACK CRIMP/SOLDER BNC
Description
General part information
FMCN1570
BNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCN1570 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | RG-58 |
| Connector Style | BNC |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Fastening Type | Bayonet Lock |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount |
| Number of Ports | 1 |
| Shield Termination | Crimp |
