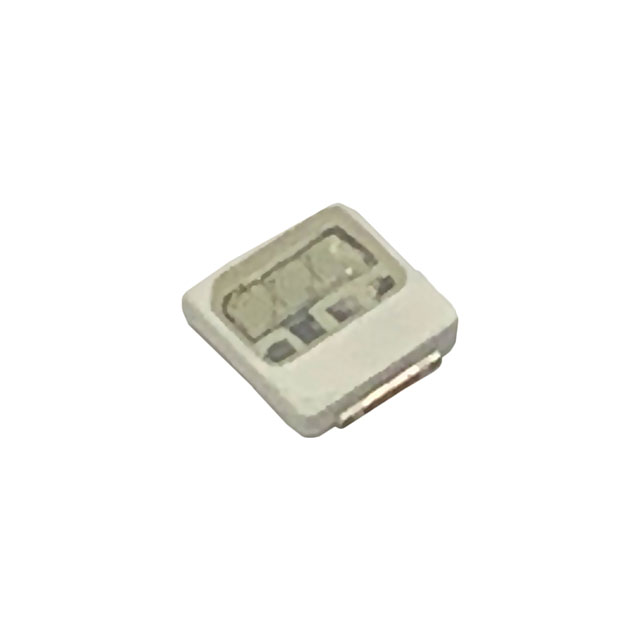

AB-EZP10A-A3-K18

Active

American Bright Optoelectronics Corporation

LED AB-EZP AMBER 1800K 3030

Search across all available documentation for this part.

Active

American Bright Optoelectronics Corporation

LED AB-EZP AMBER 1800K 3030

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AB-EZP10A-A3-K18	AB-EZP10 Series

Color	Amber	Amber
Height - Seated (Max) [Max] [z]	0.52 mm	0.52 mm
Height - Seated (Max) [Max] [z]	0.02 "	0.02 "
Luminous Flux @ Current/Temperature	65 lm	65 lm
Mounting Type	Surface Mount	Surface Mount
Package / Case	1212	1212
Package / Case	3030 Metric	3030 Metric
Size / Dimension [x]	0.118 in	0.118 in
Size / Dimension [x]	3 mm	3 mm
Size / Dimension [y]	3 mm	3 mm
Size / Dimension [y]	0.118 in	0.118 in
Supplier Device Package	3030	3030
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	12 V	12 - 24 V
Wavelength	1800 K	1300 - 1800 K

LED AB-EZP AMBER 1800K 3030

Part	Package / Case	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Viewing Angle	Mounting Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Wavelength	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Luminous Flux @ Current/Temperature	Color
American Bright Optoelectronics Corporation AB-EZP10A-A3-K18	1212	3030 Metric	0.52 mm	0.02 "	120 °	Surface Mount	0.118 in	3 mm	3 mm	0.118 in	1800 K	3030	12 V	65 lm	Amber
American Bright Optoelectronics Corporation AB-EZP10A-B3-K13	1212	3030 Metric	0.52 mm	0.02 "	120 °	Surface Mount	0.118 in	3 mm	3 mm	0.118 in	1300 K	3030	24 V	65 lm	Amber

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting Color AB-EZP Amber 1800K 1212 (3030 Metric)
