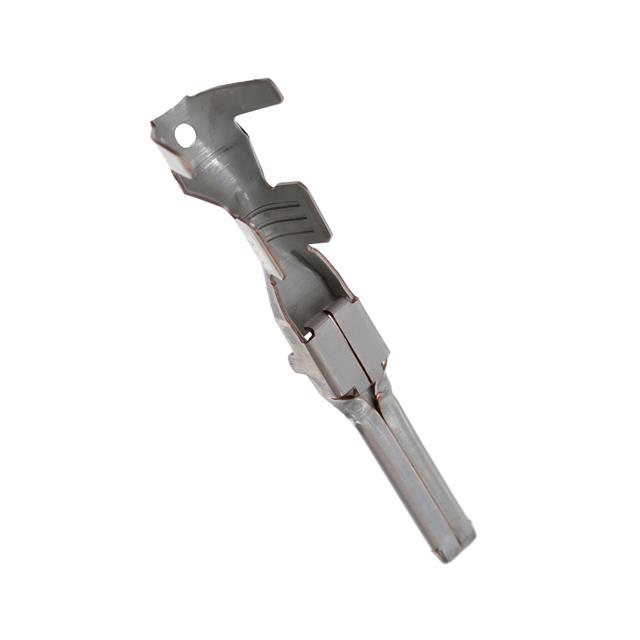

1326031-5
ActiveTE Connectivity AMP Connectors
2.8MM BLD,SEAL,14AWG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1326031-5
ActiveTE Connectivity AMP Connectors
2.8MM BLD,SEAL,14AWG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1326031-5 | 1326031 Series |
|---|---|---|
| Contact Finish | Tin | Tin |
| Contact Finish Thickness | 31.5 µin | 31.5 µin |
| Contact Finish Thickness | 0.8 µm | 0.8 µm |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Blade | Blade |
| Wire Gauge | 13.5 AWG | 12 - 20 AWG |
1326031 Series
2.8MM BLD,SEAL,16AWG
| Part | Contact Termination | Contact Finish Thickness | Contact Finish Thickness | Pin or Socket | Contact Finish | Wire Gauge |
|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1326031-4 | Crimp | 31.5 µin | 0.8 µm | Blade | Tin | 16 AWG |
TE Connectivity AMP Connectors 1-1326031-1 | Crimp | 31.5 µin | 0.8 µm | Blade | Tin | 12 AWG |
TE Connectivity AMP Connectors 1-1326031-0 | Crimp | 31.5 µin | 0.8 µm | Blade | Tin | 13.5 AWG |
TE Connectivity AMP Connectors 1326031-5 | Crimp | 31.5 µin | 0.8 µm | Blade | Tin | 13.5 AWG |
TE Connectivity AMP Connectors 1326031-2 | Crimp | 31.5 µin | 0.8 µm | Blade | Tin | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.21 | |
| 10 | $ 0.18 | |||
| Tape & Reel (TR) | 2600 | $ 0.19 | ||
| 5200 | $ 0.18 | |||
| 7800 | $ 0.17 | |||
| 13000 | $ 0.16 | |||
| 18200 | $ 0.16 | |||
| 26000 | $ 0.15 | |||
| 65000 | $ 0.15 | |||
Description
General part information
1326031 Series
Blade Contact Tin 14 AWG Crimp
Documents
Technical documentation and resources
