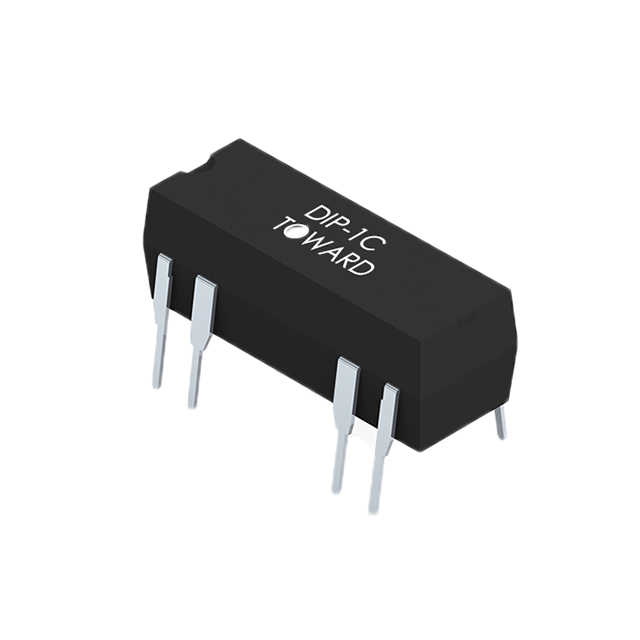

DIP-1C24
ActiveBright Toward Industrial Co., Ltd.
200V/0.5A REED RELAY, 1 FORM C,
DIP-1C24
ActiveBright Toward Industrial Co., Ltd.
200V/0.5A REED RELAY, 1 FORM C,
Description
General part information
DIP-1C24
200V/0.5A REED RELAY, 1 FORM C,
Technical Specifications
Parameters and characteristics for this part
| Specification | DIP-1C24 |
|---|---|
| Coil Current | 12 mA |
| Coil Resistance | 2000 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | C, 1, SPDT, Form |
| Contact Rating (Current) | 200 mA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2 VDC |
| Operate Time | 1.5 ms |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -20 °C |
| Release Time | 2 ms |
| Switching Voltage AC (Max) | 100 VAC |
| Switching Voltage DC (Max) | 100 VDC |
| Termination Style | PC Pin |
