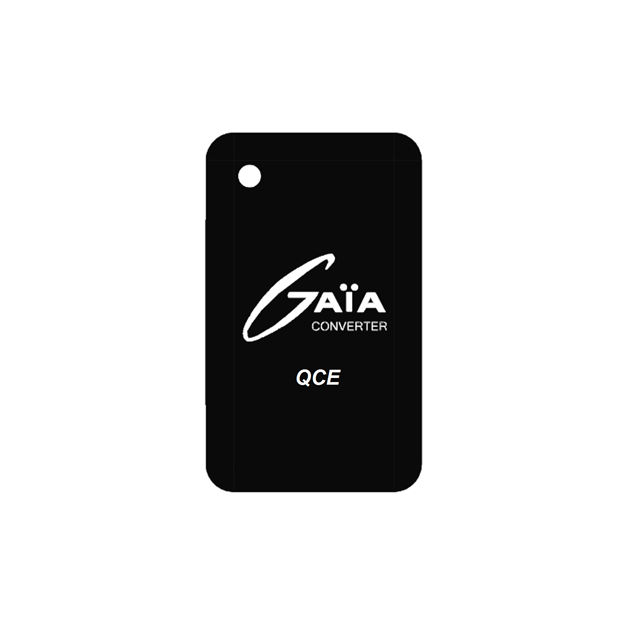

MGDBK04QE

Active

Gaia Converter

DC DC CONVERTER

Search across all available documentation for this part.

Active

Gaia Converter

DC DC CONVERTER

Technical Specifications

Parameters and characteristics for this part

DC DC CONVERTER

Part	Applications	Number of Outputs	Power (Watts)	Package / Case	Voltage - Input (Max) [Max]	Voltage - Isolation	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Efficiency	Voltage - Input (Min) [Min]	Type	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]
Gaia Converter MGDBK04QE	ITE (Commercial)	2	4 W	24-DIP Module, 8 Leads	140 V	1.5 kV	165 mA	165 mA	-12 V	-40 °C	203 °F	Through Hole	80 %	36 V	Isolated Module	12 V	0.79 "	33 mm	20 mm	7.8 mm	0.31 in	1.3 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 2 Output 12V -12V 165mA, 165mA 36V - 140V Input
