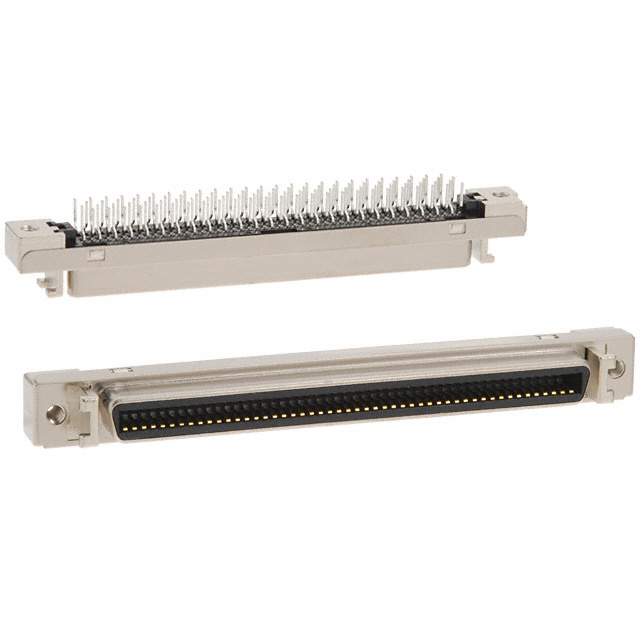

102A0-6212VC

Active

CONN RCPT 100POS PCB SOLDER

Search across all available documentation for this part.

Active

CONN RCPT 100POS PCB SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	102A0-6212VC	102A0 Series

	-	-
Connector Style	Outer Shroud Contacts	Outer Shroud Contacts
Connector Type	Receptacle	Receptacle, Stacked
Connector Type	-	2 Plugs
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.51 - 0.76 Ám
Contact Finish Thickness	30 Áin	20 - 30 Áin
Features	Shielded	Shielded
Flange Feature	Housing/Shell	Housing/Shell
Flange Feature	2.6 M	2.6 M
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount, Right Angle
Number of Positions	100	100
Number of Rows	2	2
Termination	Solder	Solder

MINI D RIBBON 100 CONTACT

Part	Mounting Type	Number of Positions	Contact Finish	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Connector Style	Termination	Features	Connector Type	Flange Feature	Flange Feature	Connector Type
3M 102A0-M218PE
3M 102A0-6212PC	Panel Mount, Through Hole	100	Gold	2	0.76 Ám	30 Áin	Outer Shroud Contacts	Solder	Shielded	Receptacle	Housing/Shell	2.6 M
3M 102A0-6212PL	Panel Mount, Through Hole	100	Gold	2	0.76 Ám	30 Áin	Outer Shroud Contacts	Solder	Shielded	Receptacle	Housing/Shell	2.6 M
3M 102A0-6212VC	Panel Mount, Through Hole	100	Gold	2	0.76 Ám	30 Áin	Outer Shroud Contacts	Solder	Shielded	Receptacle	Housing/Shell	2.6 M
3M 102A0-M218VE	Panel Mount, Right Angle, Through Hole	100	Gold	2	0.51 µm	20 µin	Outer Shroud Contacts	Solder	Shielded	Stacked	Housing/Shell	2.6 M	2 Plugs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

100 Position Receptacle Connector Panel Mount, Through Hole Solder
