2901561
ActivePhoenix Contact

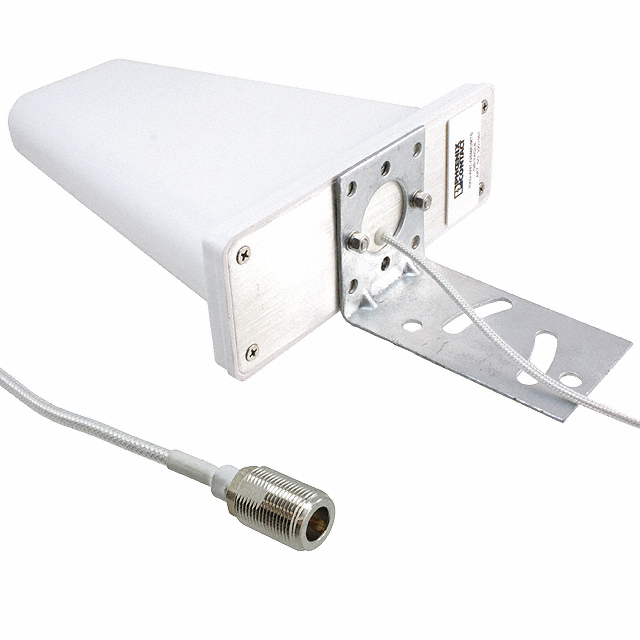

ANTENNAS RAD-ANT-GSM/UMTS- QB-YAGI-8
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2901561
ActivePhoenix Contact
ANTENNAS RAD-ANT-GSM/UMTS- QB-YAGI-8
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2901561 | RAD Series |
|---|---|---|
| 1st Connector Mounting Type | - | Free Hanging (In-Line) |
| 1st Contact Gender | - | Male |
| 2nd Connector | - | N-Type Plug |
| 2nd Connector Mounting Type | - | Free Hanging (In-Line) |
| 2nd Contact Gender | - | Male |
| Antenna Type | Yagi | Yagi |
| Cable Impedance | - | 50 Ohms |
| Cable Type | - | LMR 400 |
| Color | - | Black |
| Features | - | Shielded |
| Frequency (Center/Band) | 850 MHz, 800 MHz, 1.9 GHz, 1.8 GHz, 900 MHz, 2.1 GHz | 1.8 - 900 MHz |
| Frequency Group | Wide Band | Wide Band |
| Frequency Range [Max] | 2.5 GHz | 2.5 GHz |
| Frequency Range [Min] | 800 MHz | 800 MHz |
| Gain | 8 dBi | 8 dBi |
| Height (Max) [Max] | 2.598 in | 2.598 in |
| Height (Max) [Max] | 66 mm | 66 mm |
| Length | - | 59 ' |
| Length | - | 59 ' |
| Length | - | 18 m |
| Mounting Type | Bracket Mount | Bracket Mount |
| Number of Bands | 6 | 6 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Overall Impedance | - | 50 Ohms |
| Style | - | N-Type to N-Type |
| Termination | N Type Female | N Type Female |
RAD Series
Antennas RAD-ANT-GSM/UMTS- QB-YAGI-8
| Part | Mounting Type | Frequency Group | Frequency (Center/Band) | Gain | Termination | Antenna Type | Frequency Range [Max] | Frequency Range [Min] | Height (Max) [Max] | Height (Max) [Max] | Number of Bands | 2nd Connector | Operating Temperature [Max] | Operating Temperature [Min] | 2nd Contact Gender | 1st Contact Gender | Cable Impedance | 2nd Connector Mounting Type | Style | Features | 1st Connector Mounting Type | Length | Length | Length | Cable Type | Color | Overall Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2901561 | Bracket Mount | Wide Band | 1.8 GHz, 1.9 GHz, 2.1 GHz, 800 MHz, 850 MHz, 900 MHz | 8 dBi | N Type Female | Yagi | 2.5 GHz | 800 MHz | 2.598 in | 66 mm | 6 | ||||||||||||||||
Phoenix Contact 2867380 | N-Type Plug | 85 °C | -40 °C | Male | Male | 50 Ohms | Free Hanging (In-Line) | N-Type to N-Type | Shielded | Free Hanging (In-Line) | 59 ' | 59 ' | 18 m | LMR 400 | Black | 50 Ohms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
RAD Series
Antennas RAD-ANT-GSM/UMTS- QB-YAGI-8
Documents
Technical documentation and resources
