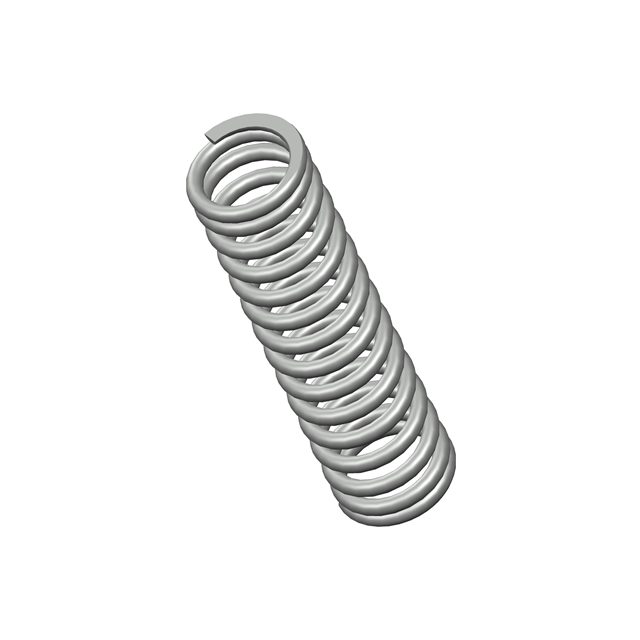

3063CS
ActiveCentury Spring Corp
COMP O= .703,L= 2.72,W= .095
3063CS
ActiveCentury Spring Corp
COMP O= .703,L= 2.72,W= .095
Description
General part information
3063CS
COMP O= .703,L= 2.72,W= .095
Technical Specifications
Parameters and characteristics for this part
| Specification | 3063CS |
|---|---|
| Diameter - Inside | 0.513 in |
| Diameter - Outside | 0.703 in |
| End Style | Ground, Closed |
| Finish | Zinc |
| Free Length | 2.72 in |
| Material | Spring Steel |
| Rate (lbs/in) | 41 lbs/in |
| Type | Compression |
| Wire Diameter | 0.095 in |
