CL1110
ActiveCLIFF Electronic Components Ltd

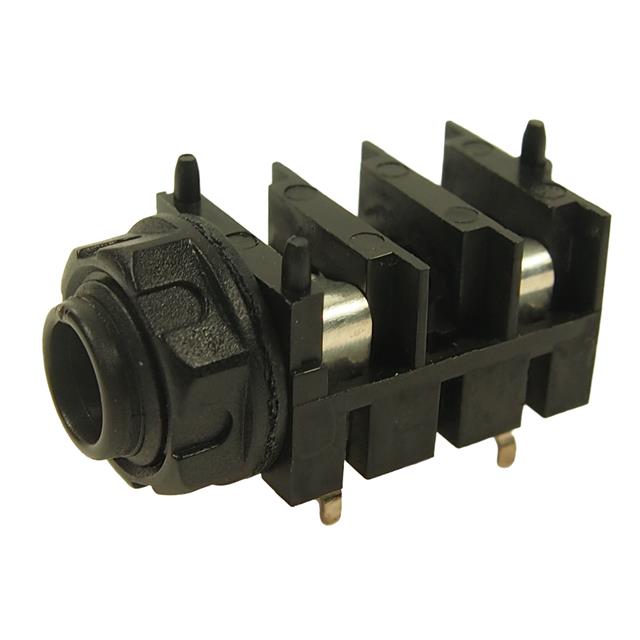

PHONE MONO JACK, 6.35MM, 3POS, PCB
CL1110
ActiveCLIFF Electronic Components Ltd
PHONE MONO JACK, 6.35MM, 3POS, PCB
Description
General part information
CL1110
6.35mm (0.250", 1/4") - Headphone Phone Jack Mono Connector Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | CL1110 |
|---|---|
| Body Color | Black |
| Connector Type | Phone Jack |
| Current Rating | 5 A |
| Gender | Female |
| Industry Recognized Mating Diameter (Headphone) | 6.35 mm |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -10 °C |
| Shielding | Unshielded |
| Signal Lines | Mono |
| Termination | Solder |
| Thread Pitch (TPI) | 20 TPI |
| Thread Size (Nominal) | 0.4375 in |
