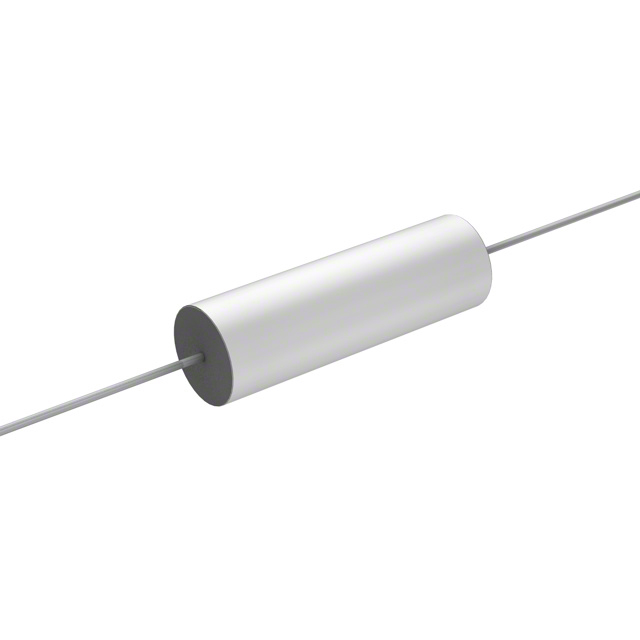

WMF6S15K-F
ActiveCornell Dubilier Knowles
CAP FILM 0.015UF 10% 630VDC AXIA
WMF6S15K-F
ActiveCornell Dubilier Knowles
CAP FILM 0.015UF 10% 630VDC AXIA
Description
General part information
WMF6S15K-F
0.015 µF Film Capacitor 630V Polyester Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | WMF6S15K-F |
|---|---|
| Applications | General Purpose |
| Capacitance | 0.015 µF |
| Dielectric Material | Polyester |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Size / Dimension Diameter | 0.295 in |
| Size / Dimension Length | 0.937 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - DC | 630 V |
