General part information

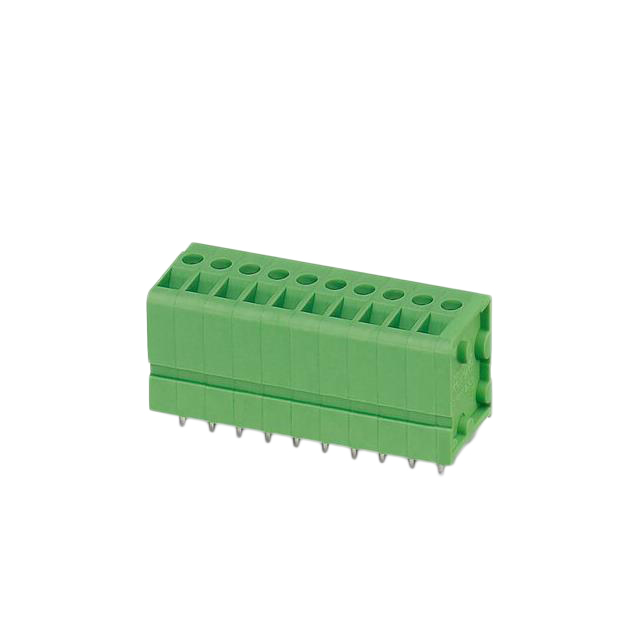

Fixed Terminal Blocks FRONT 2,5-V/SA10/ 7
Technical documentation and resources
Parameters and characteristics for this part
| Specification | 1704114 |
|---|---|
| Color | Green |
| Contact Material - Plating | Copper Alloy - Tin Plated |
| Current | 10 A |
| Housing Material | Polyamide (PA), Nylon |
| Mating Orientation | Vertical with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
| Positions Per Level | 2 |
| Torque - Screw [Max] | 0.5 Nm |
| Torque - Screw [Max] | 4.4 Lb-In |
| Torque - Screw [Min] | 0.4 Nm |
| Torque - Screw [Min] | 3.5 Lb-In |
| Voltage | 300 V |
| Wire Gauge [Max] | 30 AWG |
| Wire Gauge [Min] | 12 AWG |
| Wire Termination | Screw |
Fixed Terminal Blocks FRONT 2,5-V/SA10/ 7
| Part | Mounting Type | Mating Orientation | Color | Operating Temperature [Min] | Operating Temperature [Max] | Wire Gauge [Max] | Wire Gauge [Min] | Number of Levels | Pitch [x] | Pitch [x] | Positions Per Level | Current | Torque - Screw [Max] | Torque - Screw [Min] | Torque - Screw [Max] | Torque - Screw [Min] | Wire Termination | Contact Material - Plating | Housing Material | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1704114 | Through Hole | Vertical with Board | Green | -40 °C | 105 ░C | 30 AWG | 12 AWG | 1 | 5 mm | 0.197 in | 2 | 10 A | 0.5 Nm | 0.4 Nm | 4.4 Lb-In | 3.5 Lb-In | Screw | Copper Alloy - Tin Plated | Polyamide (PA), Nylon | 300 V |
