SM3552
ObsoleteFairview Microwave
ADAPT PLUG-JACK TNC SS 1.25 VSWR
SM3552
ObsoleteFairview Microwave
ADAPT PLUG-JACK TNC SS 1.25 VSWR
Description
General part information
SM3552

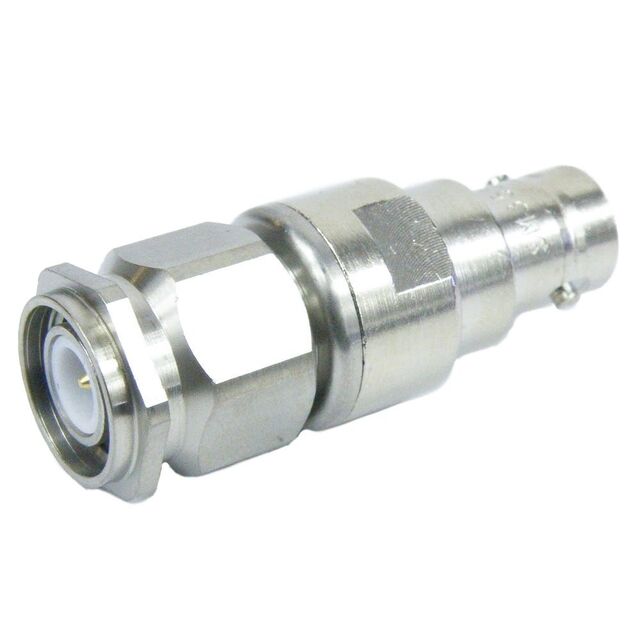

Adapter Coaxial Connector BNC Jack, Female Socket To TNC Plug, Male Pin 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | SM3552 |
|---|---|
| Adapter Series | BNC to TNC |
| Adapter Type | Plug to Jack |
| Body Material | Stainless Steel |
| Center Contact Plating | Gold |
| Center Gender | Male, Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | BNC Jack, Female Socket |
| Convert To (Adapter End) Gender | Male Pin |
| Convert To (Adapter End) Type | TNC Plug |
| Fastening Type | Threaded, Bayonet Lock |
| Frequency - Max | 4 GHz |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Style | Straight |
