3240856

Active

Phoenix Contact

SPIRAL WRAPS, SLEEVES, TUBING & CONDUIT 10 METER HOSE PRICED/SLD PER METER

Search across all available documentation for this part.

Active

Phoenix Contact

SPIRAL WRAPS, SLEEVES, TUBING & CONDUIT 10 METER HOSE PRICED/SLD PER METER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3240856	WP-SPIRAL Series

Abrasion Protection	Abrasion Resistant	Abrasion Resistant
Color	Blue	Gray, Blue
Diameter - Inside [diameter]	7 mm	7 - 16 mm
Diameter - Inside [diameter]	0.276 in	0.276 - 0.63 in
Diameter - Outside [diameter]	10 mm	10 - 21 mm
Diameter - Outside [diameter]	0.394 in	0.394 - 0.827 in
Environment Protection	-	Corrosion Resistant
Features	Solvent Resistant, Airtight, Acid Resistant	Solvent Resistant, Airtight, Acid Resistant
Heat Protection	Flame Protected	Flame Protected
Length [x]	1 m	1 m
Length [x]	3.28 ft	3.28 ft
Liquid Protection	True, True, True	True
Liquid Protection	-	Fluid Resistant
Material	Steel, Polyurethane Coated, Halogen Free	Steel, Polyurethane Coated, Halogen Free
Material Flammability Rating	UL94 V-2	UL94 V-2
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-40 °C	-40 - -25 °C
Type	Protective Hose, Wire Loom	Protective Hose, Wire Loom
Type Attributes	Convoluted, Corrugated	Convoluted, Corrugated

HOSE 0.63" ID STEEL 3.28' GRAY

Part	Environment Protection	Length [x]	Length [x]	Liquid Protection	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Color	Type Attributes	Operating Temperature [Min]	Operating Temperature [Max]	Type	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Features	Liquid Protection	Material	Material Flammability Rating	Abrasion Protection	Heat Protection
Phoenix Contact 3240852	Corrosion Resistant	1 m	3.28 ft	Fluid Resistant	0.827 in	21 mm	Gray	Convoluted, Corrugated	-25 °C	80 C	Protective Hose, Wire Loom	16 mm	0.63 in	Acid Resistant, Airtight, Solvent Resistant
Phoenix Contact 3240856		1 m	3.28 ft		0.394 in	10 mm	Blue	Convoluted, Corrugated	-40 °C	80 C	Protective Hose, Wire Loom	7 mm	0.276 in	Acid Resistant, Airtight, Solvent Resistant	, ,	Steel, Polyurethane Coated, Halogen Free	UL94 V-2	Abrasion Resistant	Flame Protected

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

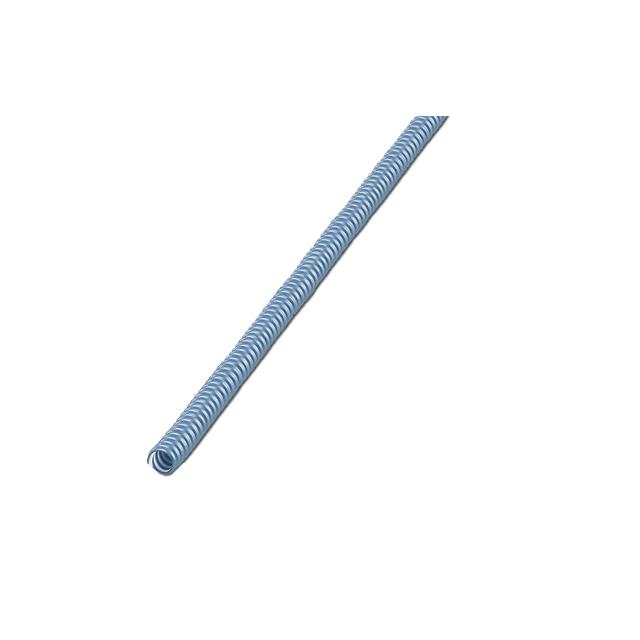

Blue Steel, Polyurethane Coated, Halogen Free Convoluted, Corrugated Wire Loom, Protective Hose 0.276" (7.00mm) 3.28' (1.00m)
