General part information

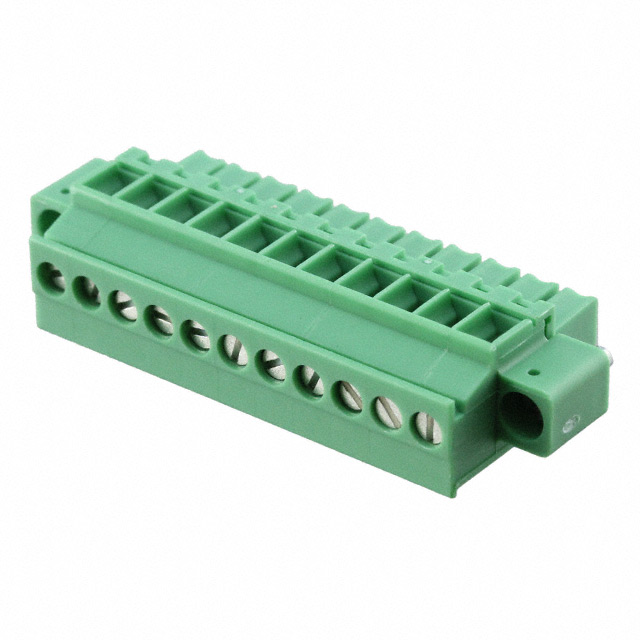

Pluggable Terminal Blocks 11 Pos 3.5mm pitch Plug 28-16 AWG Screw
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 1863097 | MCVW Series |
|---|---|---|
| Color | Green | Green |
| Contact Mating Finish | Tin | Tin |
| Current - IEC | 8 A | 8 A |
| Current - UL | 8 A | 8 A |
| Features | Mating Flange | Mating Flange |
| Housing Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Insulation Height | 0.752 " | 0.752 " |
| Insulation Height | 19.1 mm | 19.1 mm |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Levels | 1 | 1 |
| Number of Positions | 11 | 6 - 12 |
| Number of Positions | - | 16 |
| Pitch [x] | 3.5 mm | 3.5 - 3.81 mm |
| Pitch [x] | 0.138 in | 0.138 - 0.15 in |
| Plug Wire Entry | 270 ° | 270 ° |
| Positions Per Level | 11 | 6 - 16 |
| Screw Size | M2 | M2 |
| Termination Style | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp |
| Torque - Screw [Max] | 2.2 Lb-In | 2.2 Lb-In |
| Torque - Screw [Max] | 0.25 Nm | 0.25 Nm |
| Torque - Screw [Min] | 0.22 Nm | 0.22 Nm |
| Torque - Screw [Min] | 1.9 Lb-In | 1.9 Lb-In |
| Type | Plug, Female Sockets | Plug, Female Sockets |
| Voltage - IEC | 320 V | 320 V |
| Voltage - UL | 300 V | 300 V |
| Wire Gauge or Range - AWG [Max] | 30 AWG | 30 AWG |
| Wire Gauge or Range - AWG [Min] | 14 AWG | 14 AWG |
| Wire Gauge or Range - mm˛ | - | 0.14 mm˛ |
| Wire Gauge or Range - mm˛ | - | 1.5 mm˛ |
| Wire Gauge or Range - mm² [Max] | 1.5 mm² | 1.5 mm² |
| Wire Gauge or Range - mm² [Min] | 0.14 mm² | 0.14 mm² |
| Wire Strip Length | 7 mm | 7 mm |
Pluggable Terminal Blocks 11 Pos 3.5mm pitch Plug 28-16 AWG Screw
| Part | Voltage - UL | Screw Size | Voltage - IEC | Color | Current - IEC | Pitch [x] | Pitch [x] | Type | Plug Wire Entry | Wire Gauge or Range - AWG [Min] | Wire Gauge or Range - AWG [Max] | Torque - Screw [Max] | Torque - Screw [Max] | Torque - Screw [Min] | Torque - Screw [Min] | Wire Gauge or Range - mm² [Min] | Wire Gauge or Range - mm² [Max] | Current - UL | Housing Material | Number of Positions | Contact Mating Finish | Material Flammability Rating | Termination Style | Mounting Type | Insulation Height | Insulation Height | Number of Levels | Positions Per Level | Wire Strip Length | Features | Number of Positions | Wire Gauge or Range - mm˛ [Min] | Wire Gauge or Range - mm˛ [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1827017 | 300 V | M2 | 320 V | Green | 8 A | 0.15 in | 3.81 mm | Plug, Female Sockets | 270 ° | 14 AWG | 30 AWG | 2.2 Lb-In | 0.25 Nm | 0.22 Nm | 1.9 Lb-In | 0.14 mm² | 1.5 mm² | 8 A | Polyamide (PA), Nylon | 6 | Tin | UL94 V-0 | Screw - Rising Cage Clamp | Free Hanging (In-Line) | 0.752 " | 19.1 mm | 1 | 6 | 7 mm | ||||
Phoenix Contact 1863107 | 300 V | M2 | 320 V | Green | 8 A | 0.138 in | 3.5 mm | Plug, Female Sockets | 270 ° | 14 AWG | 30 AWG | 2.2 Lb-In | 0.25 Nm | 0.22 Nm | 1.9 Lb-In | 0.14 mm² | 1.5 mm² | 8 A | Polyamide (PA), Nylon | 12 | Tin | UL94 V-0 | Screw - Rising Cage Clamp | Free Hanging (In-Line) | 0.752 " | 19.1 mm | 1 | 12 | 7 mm | Mating Flange | |||
Phoenix Contact 1827075 | 300 V | M2 | 320 V | Green | 8 A | 0.15 in | 3.81 mm | Plug, Female Sockets | 270 ° | 14 AWG | 30 AWG | 2.2 Lb-In | 0.25 Nm | 0.22 Nm | 1.9 Lb-In | 0.14 mm² | 1.5 mm² | 8 A | Polyamide (PA), Nylon | 12 | Tin | UL94 V-0 | Screw - Rising Cage Clamp | Free Hanging (In-Line) | 0.752 " | 19.1 mm | 1 | 12 | 7 mm | ||||
Phoenix Contact 1863149 | 300 V | M2 | 320 V | Green | 8 A | 0.138 in | 3.5 mm | Plug, Female Sockets | 270 ° | 14 AWG | 30 AWG | 2.2 Lb-In | 0.25 Nm | 0.22 Nm | 1.9 Lb-In | 8 A | Polyamide (PA), Nylon | Tin | UL94 V-0 | Screw - Rising Cage Clamp | Free Hanging (In-Line) | 0.752 " | 19.1 mm | 1 | 16 | 7 mm | Mating Flange | 16 | 0.14 mm˛ | 1.5 mm˛ | |||
Phoenix Contact 1863097 | 300 V | M2 | 320 V | Green | 8 A | 0.138 in | 3.5 mm | Plug, Female Sockets | 270 ° | 14 AWG | 30 AWG | 2.2 Lb-In | 0.25 Nm | 0.22 Nm | 1.9 Lb-In | 0.14 mm² | 1.5 mm² | 8 A | Polyamide (PA), Nylon | 11 | Tin | UL94 V-0 | Screw - Rising Cage Clamp | Free Hanging (In-Line) | 0.752 " | 19.1 mm | 1 | 11 | 7 mm | Mating Flange |
