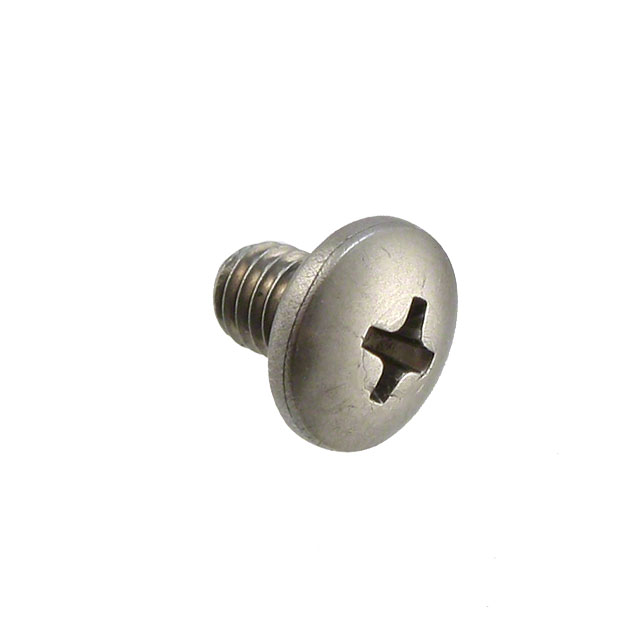

R10-32X1/4-5701

Active

APM HEXSEAL

MACHINE SCREW PAN PHILLIPS 10-32

Search across all available documentation for this part.

Active

APM HEXSEAL

MACHINE SCREW PAN PHILLIPS 10-32

Technical Specifications

Parameters and characteristics commom to parts in this series

MACHINE SCREW PAN PHILLIPS 10-32

Part	Head Diameter [diameter]	Head Diameter [diameter]	Type	Length - Overall	Length - Overall	Drive Type	Head Height	Head Height	Material	Thread Size	Length - Below Head	Length - Below Head	Length - Below Head	Features	Screw Head Type	Length - Overall [x]	Length - Overall [x]	Length - Below Head	Length - Below Head [x]
APM HEXSEAL R10-32X1/2 2701	10.24 mm	0.403 in	Machine Screw	0.633 in	16.08 mm	Phillips	0.133 "	3.38 mm	Stainless Steel	#10-32	12.7 mm	1/2	0.5 in	Self Sealing	Pan Head
APM HEXSEAL R10-32X7/16 2701	10.24 mm	0.403 in	Machine Screw			Phillips	0.133 "	3.38 mm	Stainless Steel	#10-32	11.13 mm	7/16	0.438 "	Self Sealing	Pan Head	0.571 in	14.5 mm
APM HEXSEAL R10-32X1/4-5701	10.24 mm	0.403 in	Machine Screw			Phillips				#10-32	6.35 mm		0.25 in	Self Sealing	Pan Head			0.25 in
APM HEXSEAL R10-32X3/4 2701	10.24 mm	0.403 in	Machine Screw		22.43 mm	Phillips	0.133 "	3.38 mm	Stainless Steel	#10-32	19.05 mm		0.75 "	Self Sealing	Pan Head	0.883 in		0.75 "
APM HEXSEAL R10-32X7/8 2701	10.24 mm	0.403 in	Machine Screw			Phillips	0.133 "	3.38 mm	Stainless Steel	#10-32	0.875 in			Self Sealing	Pan Head	1.008 in	25.6 mm	22.23 mm	0.875 in
APM HEXSEAL R10-32X1 2701	10.24 mm	0.403 in	Machine Screw	1.133 in	28.78 mm	Phillips	0.133 "	3.38 mm	Stainless Steel	#10-32	25.4 mm		1 in	Self Sealing	Pan Head
APM HEXSEAL R10-32X5/8 2701	10.24 mm	0.403 in	Machine Screw			Phillips	0.133 "	3.38 mm	Stainless Steel	#10-32	15.88 mm		0.625 in	Self Sealing	Pan Head	0.758 in	19.25 mm	0.625 in
APM HEXSEAL R10-32X3/8 2701	10.24 mm	0.403 in	Machine Screw			Phillips	0.133 "	3.38 mm	Stainless Steel	#10-32	0.375 "		0.375 "	Self Sealing	Pan Head	0.508 in	12.9 mm	9.53 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	250	$ 0.94

General part information

#10-32 Pan Head Machine Screw Phillips Drive
