RSA-3476-1

Active

RF Industries

SMA FEMALE-BNC MALE

Search across all available documentation for this part.

Active

RF Industries

SMA FEMALE-BNC MALE

Technical Specifications

Parameters and characteristics for this part

Specification	RSA-3476-1

Adapter Series	BNC to SMA
Adapter Type	Plug to Jack
Body Finish	Gold
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	Female Socket, SMA Jack
Convert To (Adapter End)	BNC Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock, Threaded
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Mounting Type	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Dielectric Material	Adapter Series	Style	Conversion Type	Convert From (Adapter End)	Body Finish	Mating Cycles	Adapter Type	Fastening Type	Impedance	Center Contact Material	Body Material	Convert To (Adapter End)
RF Industries RSA-3476-1	Free Hanging (In-Line)	Gold	-65 ░C	85 °C	4 GHz	Polytetrafluoroethylene (PTFE)	BNC to SMA	Straight	Between Series	Female Socket SMA Jack	Gold	500	Plug to Jack	Bayonet Lock Threaded	50 Ohms	Phosphor Bronze	Brass	BNC Plug Male Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

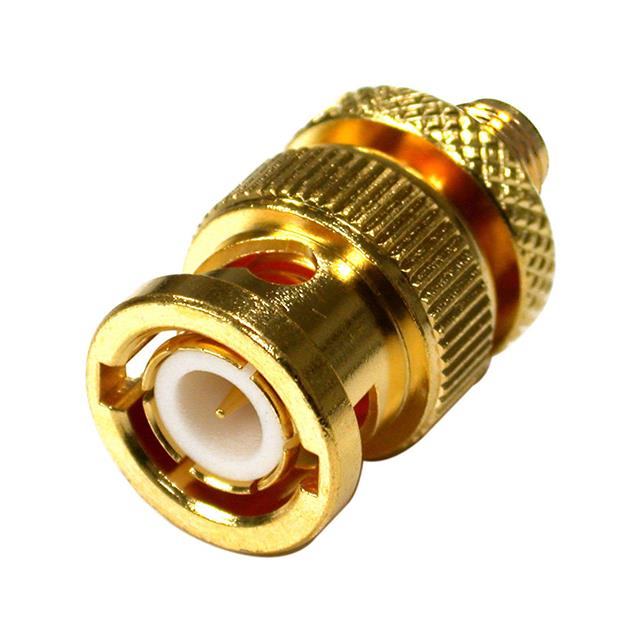

Adapter Coaxial Connector SMA Jack, Female Socket To BNC Plug, Male Pin 50 Ohms
