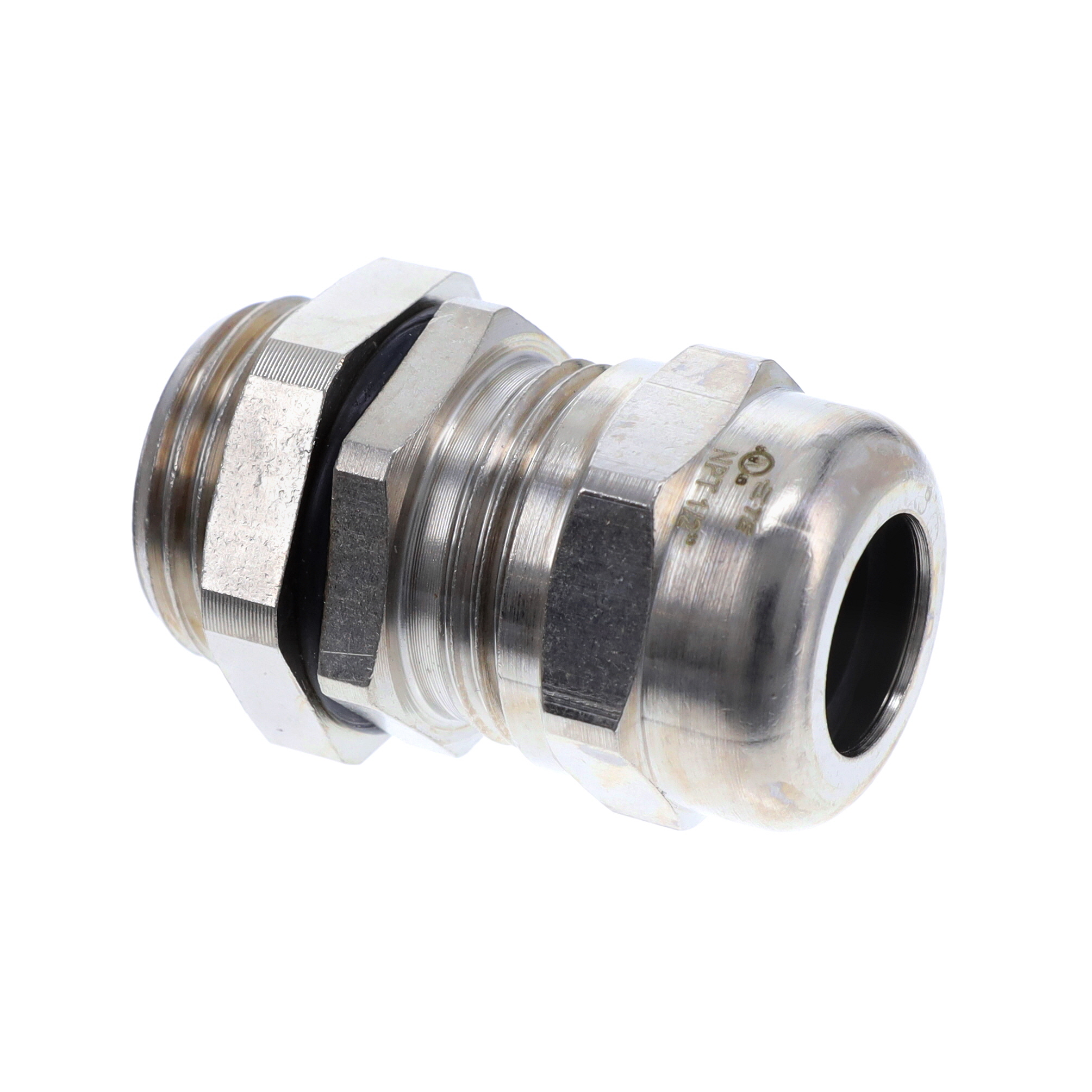

EM-SGL-NPT12-MET-B

Active

TE Connectivity Raychem Cable Protection

CABLE GLND 6-12MM 1/2" NPT BRASS

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CABLE GLND 6-12MM 1/2" NPT BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	EM-SGL-NPT12-MET-B

Color	Silver
Includes	Locknut, Seal
Ingress Protection	IP68 - Dust Tight, Waterproof
Material	Brass, Nickel Plated
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Outside Cable Diameter (Max) [Max] [diameter]	0.472 in
Outside Cable Diameter (Max) [Max] [diameter]	12 mm
Outside Cable Diameter (Min) [Min] [diameter]	6 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.236 in
Thread Length	13 mm
Thread Length	0.512 in
Thread Size	1/2" NPT
Type	Cable Gland

Part	Includes	Thread Length	Thread Length	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Material	Color	Thread Size	Type	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]
TE Connectivity Raychem Cable Protection EM-SGL-NPT12-MET-B	Locknut Seal	13 mm	0.512 in	0.472 in	12 mm	6 mm	0.236 in	Brass Nickel Plated	Silver	1/2" NPT	Cable Gland	IP68 - Dust Tight Waterproof	100 °C	-20 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated 1/2" NPT Silver
