9842NH 0601000

Active

Belden Inc.

MULTI-PAIR 4COND 24AWG 1000'

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 4COND 24AWG 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	9842NH 0601000

Cable Type	Multi-Pair
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	8.2 mm
Jacket (Insulation) Diameter [diameter]	0.323 in
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2919
Shield Coverage	90 %, 100 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Computer
Voltage	300 V
Wire Gauge	24 AWG

Part	Usage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Number of Conductors	Conductor Insulation	Cable Type	Jacket Color	Shield Coverage	Voltage	Shield Type	Shield Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Wire Gauge	Features	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]
Belden Inc. 9842NH 0601000	Computer	0.889 mm	0.035 in	4	Polyethylene (PE)	Multi-Pair	Chrome	90 % 100 %	300 V	Braid Foil	Aluminum Copper Tinned	8.2 mm	0.323 in	1000 ft	304.8 m	-20 C	80 C	UL Style 2919	24 AWG	Drain Wire	Copper Tinned	32 AWG	7

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

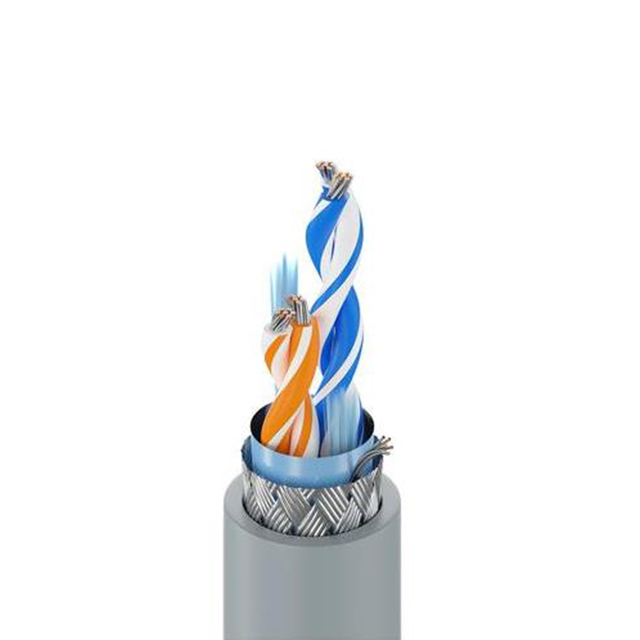

4 (2 Pair Twisted) Conductor Multi-Pair Cable Chrome 24 AWG Foil, Braid 1000.0' (304.8m)
